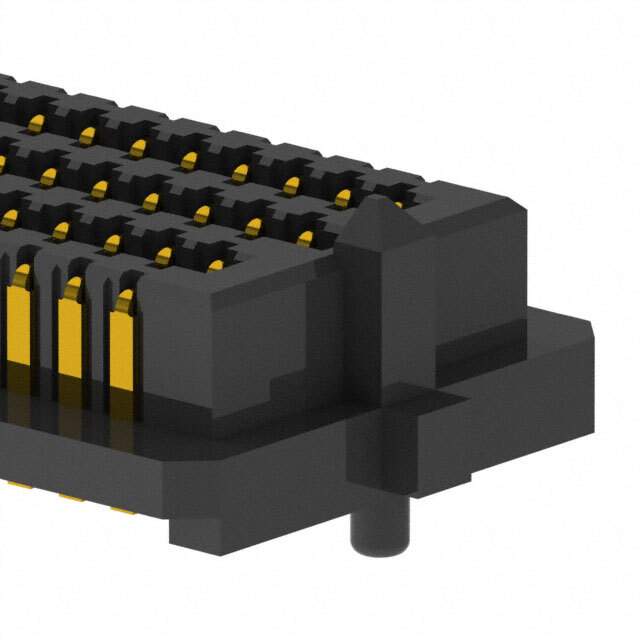

SEAM-20-02.0-S-08-2-A

Name: SEAM-20-02.0-S-08-2-A
Brand: Samtec Inc.
SKU: 1293449
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAM-20-02.0-S-08-2-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM-20-02.0-S-08-2-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tray
Product Status	Obsolete
Connector Type	High Density Array, Male
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 9.5mm, 10mm
Height Above Board	0.181" (4.60mm)
Base Product Number	SEAM-20
Other Names	SAM8016
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293449-SEAM-20-02.0-S-08-2-A
Ultra Librarian 3D Model	Ultra Librarian SEAM-20-02.0-S-08-2-A CAD Model

Alternative Products

Description

The Samtec Inc. SEAM-20-02.0-S-08-2-A is a high-density array connector that belongs to the SEARAY™ SEAM series.

Connector Type: Male
Rows: 8
Positions Loaded: 160
Contacts: Gold
Pitch: 0.050 inches (1.27mm)
Board Guide: Yes
Height Above Board: 0.181 inches (4.60mm)
Mounting Type: Surface Mounted
Application: Mezzanine Board-to-Board
