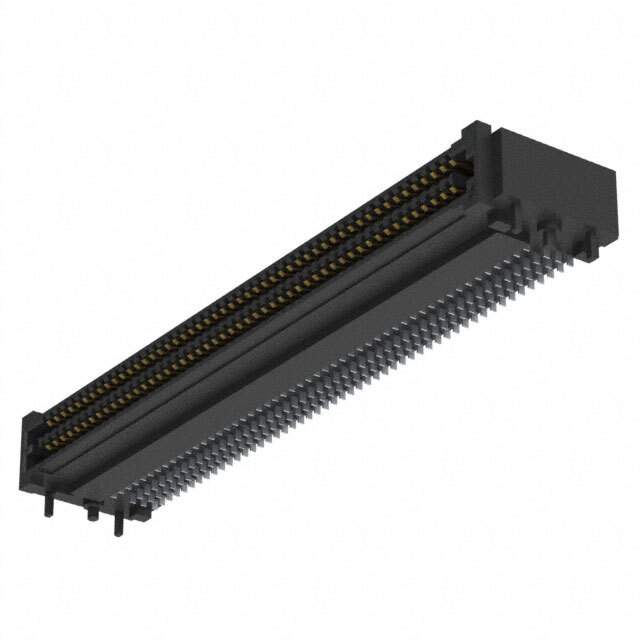

The SEAF-50-01-L-04-2-RA-TR is a high-density, high-speed edge card socket from Samtec's SEARAY™ family. Designed for applications demanding reliable signal integrity and efficient use of board space, this connector features a right-angle orientation and is supplied on tape and reel for automated assembly.

Applications:

• High-speed backplanes
• Edge card connections for printed circuit boards (PCBs)
• Data center equipment and servers
• Networking switches and routers
• Medical imaging devices
• Automated test equipment

Features:

• High-Density Design: Allows for a large number of Input/Output (I/O) connections in a minimal footprint.
• Right-Angle Orientation: Enables connections where boards are perpendicular to each other.
• Edge Card Socket: Specifically designed to mate with edge cards.
• SEARAY™ Contact System: Provides high-reliability and signal integrity.
• Tape and Reel Packaging: Suited for automated pick-and-place assembly.

Benefits:

• Optimized Board Space: Maximizes component density on the PCB.
• Reliable Signal Transmission: Ensures consistent performance in demanding high-speed applications.
• Streamlined Manufacturing: Tape and reel packaging simplifies the assembly process.
• High-Speed Data Transfer: Supports high data rates necessary for modern applications.
• Enhanced Design Flexibility: Right-angle configuration allows for more options in board layout.

Additional Details:

The SEAF-50-01-L-04-2-RA-TR features a 1.27 mm pitch and is manufactured with high-quality materials for long-term durability. The gold-plated contacts minimize signal loss and ensure a secure connection. This connector is designed to meet the needs of high-speed digital systems.

For detailed dimensions, electrical specifications, and mating information, refer to the official Samtec datasheet for this part number.
