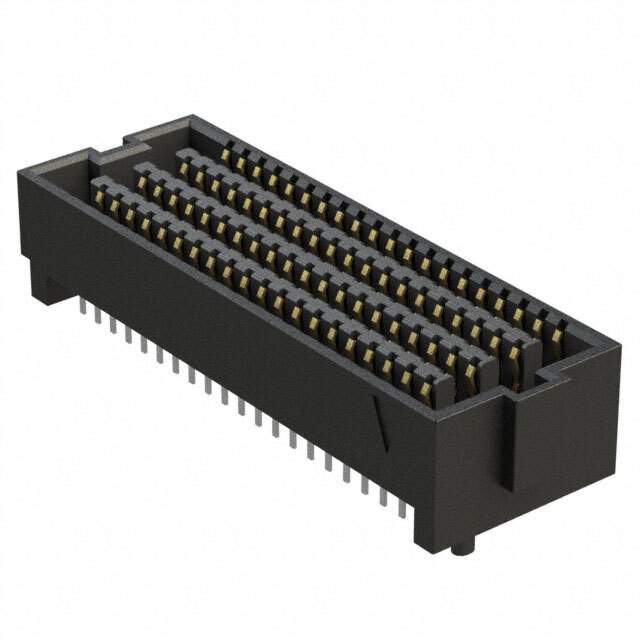

SEAF-20-01-L-08-SPECIAL Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-01-L-08-SPECIAL

Part No SEAF-20-01-L-08-SPECIAL
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-01-L-08-SPECIAL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Bulk
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number SEAF-20
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293947-SEAF-20-01-L-08-SPECIAL
Ultra Librarian 3D Model Ultra Librarian SEAF-20-01-L-08-SPECIAL CAD Model

Description

The SEARAY™ SEAF connector is a high-density array female connector, designed for use in board-to-board interconnects.

  • Positions: 160
  • Pitch: 0.050 inches
  • Application: Mezzanine
  • Contact Finish: Gold
  • Finish Thickness: 10.0µin (0.25µm)
  • Packaging: Bulk
  • Mated Stacking Heights: None
  • Height Above Board: None
  • Standard Package: 1
  • Mounting: Surface Mountable
  • ECCN: EAR99
