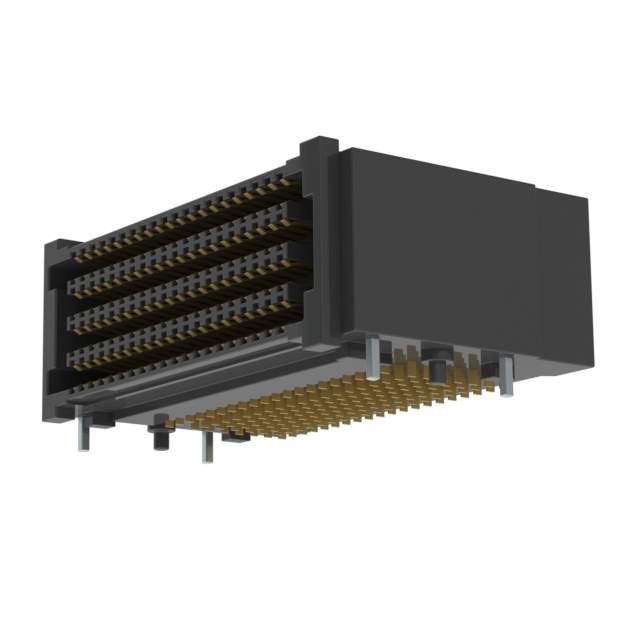

SEAF-20-01-L-08-1-RA-TR

Name: SEAF-20-01-L-08-1-RA-TR
Brand: Samtec Inc.
SKU: 1293720
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-01-L-08-1-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-01-L-08-1-RA-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.511" (12.99mm)
Base Product Number	SEAF-20
Standard Package	75
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293720-SEAF-20-01-L-08-1-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-01-L-08-1-RA-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF high-density array, female connector is a rectangular connector that features a board guide and is ideal for use in board-to-board applications.

Pitch: 0.050" (1.27mm)
Positions: 160
Mounting Type: Surface mount, right-angle
Height Above Board: 0.511" (12.99mm)
Contact Finish Thickness: 10.0µin (0.25µm)
RoHS: Non-compliant
Package: Tape and reel
