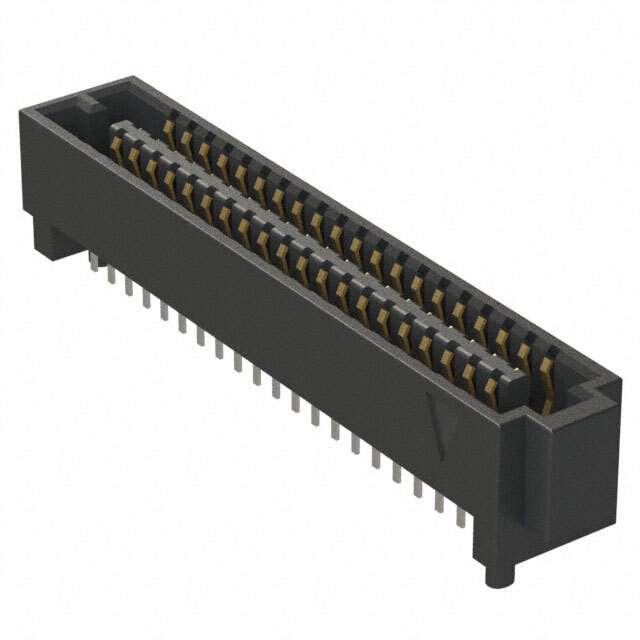

SEAF-20-01-L-04-SPECIAL Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-01-L-04-SPECIAL

Part No SEAF-20-01-L-04-SPECIAL
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-01-L-04-SPECIAL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Bulk
Connector Type High Density Array, Female
Number of Positions 80
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number SEAF-20
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293930-SEAF-20-01-L-04-SPECIAL
Ultra Librarian 3D Model Ultra Librarian SEAF-20-01-L-04-SPECIAL CAD Model

Description

The SEAF-20-01-L-04-SPECIAL is an 80-position female high density array connector from Samtec Inc.

  • Application: Mezzanine (board-to-board)
  • Pitch: 0.050" (1.27mm)
  • Contact Shape: Circular
  • Fastening Type: Not specified
  • Termination: Surface mount technology (SMT)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Color: Black
  • Voltage Rating: Not specified
  • Mated Stacking Heights: Not specified
  • Height Above Board: Not specified
  • Series: SEARAY™ SEAF
  • Standard Package: 1
