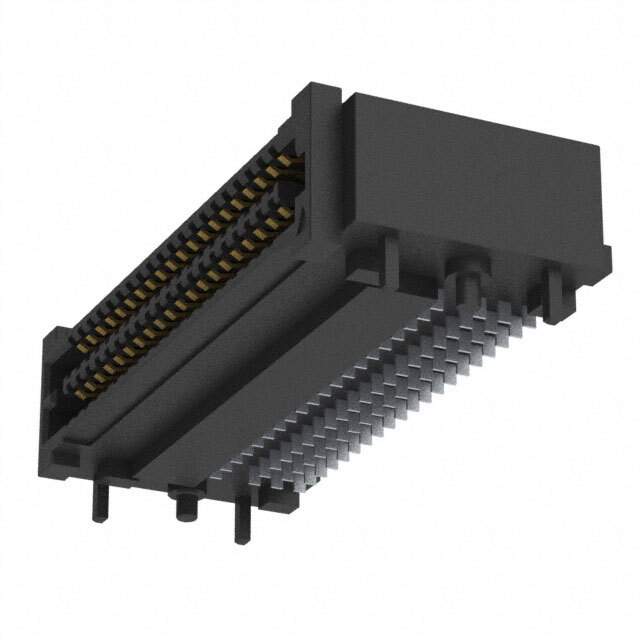

SEAF-20-01-L-04-2-RA-TR

Name: SEAF-20-01-L-04-2-RA-TR
Brand: Samtec Inc.
SKU: 1293864
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAF-20-01-L-04-2-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-01-L-04-2-RA-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.311" (7.90mm)
Base Product Number	SEAF-20
Other Names	SEAF-20-01-L-04-2-RA-FR,SAM14299CT,SAM14299DKR,SEAF-20-01-L-04-2-RA-TR,SAM14299TR
Standard Package	175
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293864-SEAF-20-01-L-04-2-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-01-L-04-2-RA-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series high-density array female connector is used in board-to-board applications.

Number of Positions: 80
Mounting Type: Surface mountable with a right-angle mounting type
Pitch: 0.050 inches (1.27mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
Height Above Board: 0.311 inches (7.90mm)
Packaging: Tape and reel packaging
Operating Temperatures: Between -55°C and 105°C
Manufacturer: Samtec Inc.
