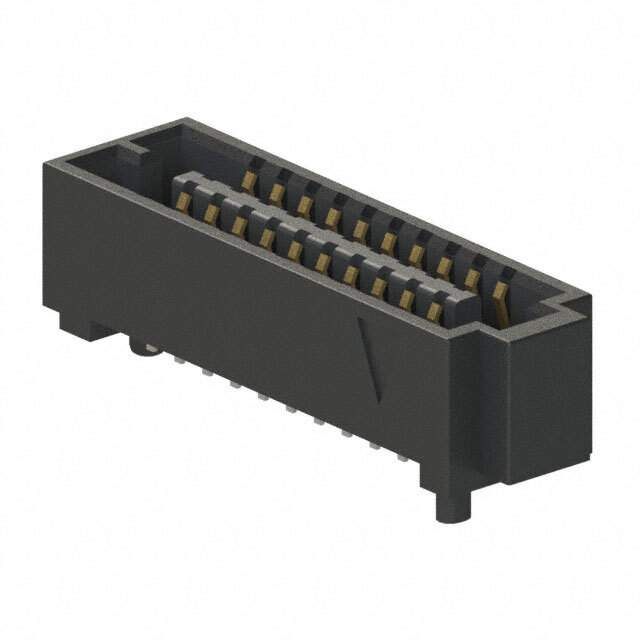

SEAF-10-05.0-L-04-1-A

Get a Quote

Part No	SEAF-10-05.0-L-04-1-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-10-05.0-L-04-1-A Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Bulk
Connector Type	High Density Array, Female
Number of Positions	40
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-10
Standard Package	1
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293934-SEAF-10-05.0-L-04-1-A
Ultra Librarian 3D Model	Ultra Librarian SEAF-10-05.0-L-04-1-A CAD Model

Alternative Products

Description

The SEARAY™ SEAF series is a high-density, board-to-board connector system that features a 0.050-inch (1.27 mm) pitch with 40 positions in a 4-row configuration.

Product Name: SEAF-10-05.0-L-04-1-A
Manufacturer: Samtec Inc.
Pitch: 0.050-inch (1.27 mm)
Positions: 40
Rows: 4
Contact Finish: Gold-plated
Finish Thickness: 10.0µin (0.25µm)
Height Above Board: 0.199 inches (5.05 mm)
Mated Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, or 18mm
Mounting: Surface Mount Technology (SMT)
Packaging: Bulk
Operating Temperature: -55°C to 125°C
ECCN: EAR99
RoHS: Non-compliant
MSL Level: 1 (unlimited)
HTSUS: 8536.69.4040
