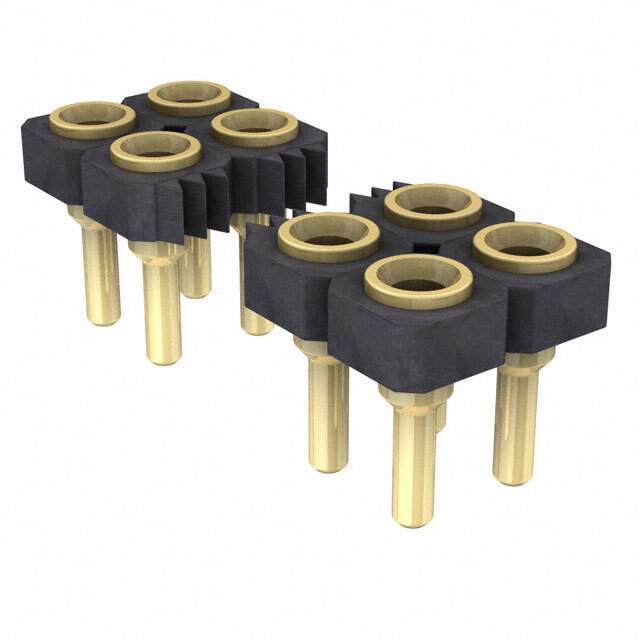

SDL-115-G-12

Name: SDL-115-G-12
Brand: Samtec Inc.
SKU: 1292906
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDL-115-G-12
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-115-G-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-115
Other Names	SAM1135-15
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292906-SDL-115-G-12
Ultra Librarian 3D Model	Ultra Librarian SDL-115-G-12 CAD Model

Description

The SDL series receptacle connector from Samtec Inc. is a board-to-board style connector with a pitch of 0.100" (2.54mm) and a row spacing of 0.100" (2.54mm).

Manufacturer: Samtec Inc.
Series: SDL
Style: board-to-board
Pitch: 0.100" (2.54mm)
Row Spacing: 0.100" (2.54mm)
Contact Shape: circular
Contact Type: female socket
Positions Loaded: all
Rows: two
Contact Material: beryllium copper
Contact Finish: gold
Finish Thickness: 10.0μin (0.25μm)
Fastening Type: push-pull
Termination: solder
Insulation Material: liquid crystal polymer (LCP)
Insulation Height: 0.095" (2.41mm)
Operating Temperature: -55°C to 125°C
