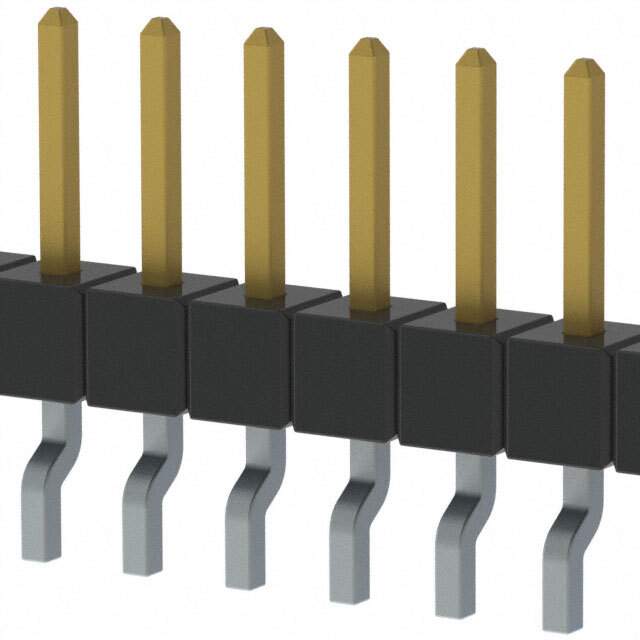

Same model may have multiple batches, images only for reference.

MMT-112-02-F-SH-TR

Name: MMT-112-02-F-SH-TR
Brand: Samtec Inc.
SKU: 1338534
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMT-112-02-F-SH-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 12POS 2MM / Connector Header Surface Mount, Right Angle 12 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	MMT
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.175" (4.45mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	MMT-112
Standard Package	650
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1338534-MMT-112-02-F-SH-TR
Ultra Librarian 3D Model	Ultra Librarian MMT-112-02-F-SH-TR CAD Model

Alternative Products

Description

The MMT series header connector is a male pin connector with 12 positions and a pitch of 2.00mm.

Positions: 12
Pitch: 2.00mm
Connection Type: Board-to-Board or Cable
Current Rating: 3A
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Mounting Type: Surface Mountable, Right Angle
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
Fastening Type: Push-Pull
Shrouding: Unshrouded
Mating Contact Finish: Gold
Mating Contact Finish Thickness: 3.00μin (0.076μm)
Post Contact Finish: Tin
Packaging: Tape and Reel
Standard Package: 650
