Same model may have multiple batches, images only for reference.

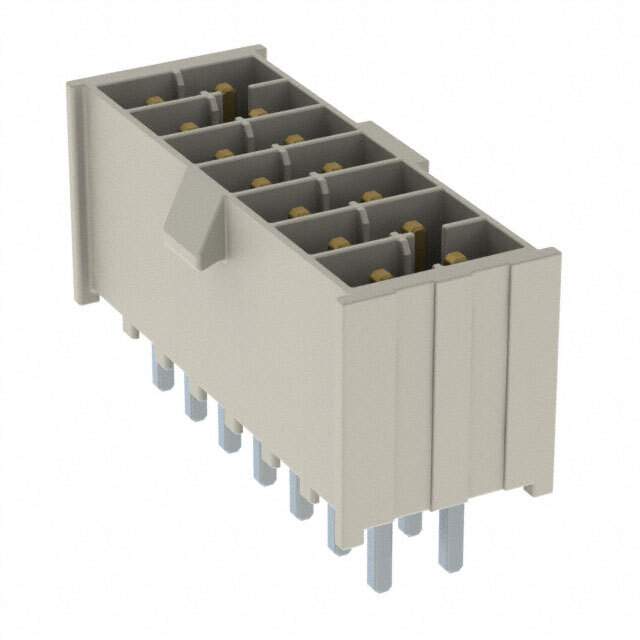

IPL1-107-01-L-D-K

Name: IPL1-107-01-L-D-K
Brand: Samtec Inc.
SKU: 1332464
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL1-107-01-L-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet	IPL1-107-01-L-D-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.215" (5.46mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.320" (8.13mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Voltage Rating	675VAC, 954VDC
Base Product Number	IPL1-107
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM9603
Standard Package	29
Win Source Part Number	1332464-IPL1-107-01-L-D-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-107-01-L-D-K CAD Model

Alternative Products

Description

The Samtec IPL1-107-01-L-D-K 1332464 is a male pin header connector that has two rows of gold finished contacts.

Number of Rows: Two
Contact Finish: Gold
Pitch: 0.100" (2.54mm)
Insulation Color: Natural
Type: Shrouded-4 wall
Fastening Type: Locking Ramp
