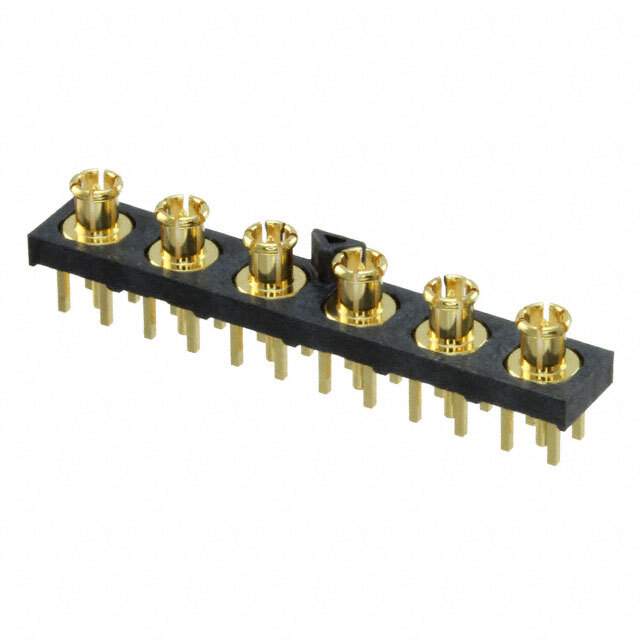

GRF1-P-P-06-E-ST-TH1 Real Image
Same model may have multiple batches, images only for reference.

GRF1-P-P-06-E-ST-TH1

Part No GRF1-P-P-06-E-ST-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCXV PLUG STR 50 OHM PCB / MMCX (V) Connector Plug, Male Pin 50Ohm Through Hole Solder
Datasheet
GRF1-P-P-06-E-ST-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Samtec Inc.
Series GRF1-P
Package Tube
Connector Style MMCX (V)
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 6
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C ~ 90°C
Voltage Rating 500 V
Base Product Number GRF1-P
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1340132-GRF1-P-P-06-E-ST-TH1
Ultra Librarian 3D Model Ultra Librarian GRF1-P-P-06-E-ST-TH1 CAD Model

Description

The GRF1-P series coaxial connector assembly is an ideal solution for RF applications.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Snap-On
  • Package: Tube
  • Contact Termination: Solder
  • Connector Style: MMCX (V)
  • Voltage Rating: 500V
  • Number of Ports: 6
  • Impedance: 50Ohm
  • Frequency: Up to 6GHz
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Plating: Gold
