Same model may have multiple batches, images only for reference.

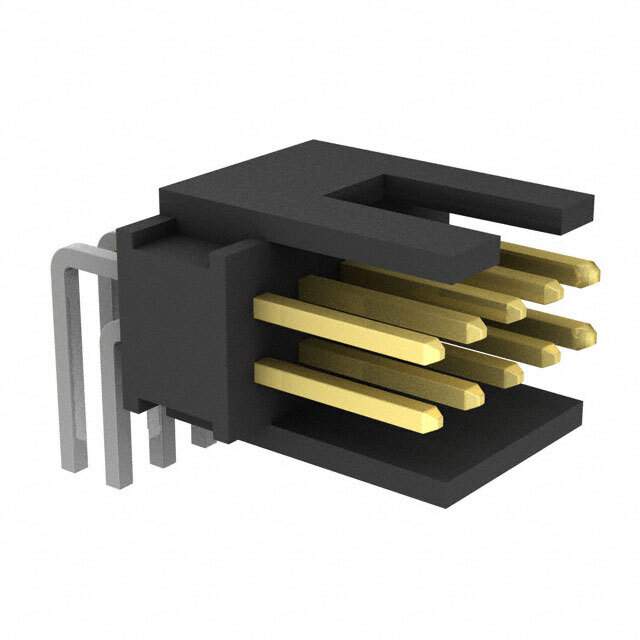

FTSH-105-01-F-D-RA-K Real Image
Same model may have multiple batches, images only for reference.

FTSH-105-01-F-D-RA-K

Part No FTSH-105-01-F-D-RA-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 1.27MM / Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)
Datasheet
FTSH-105-01-F-D-RA-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.090" (2.29mm)
Insulation Height 0.135" (3.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-105
Standard Package 92
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1338618-FTSH-105-01-F-D-RA-K
Ultra Librarian 3D Model Ultra Librarian FTSH-105-01-F-D-RA-K CAD Model

Description

The FTSH series male pin header is a reliable and durable component for your electronic projects. Bold the product name (e.g., FTSH) is missing and manufacturer is also not available.

  • Positions: 10
  • Connector Type: Header Cuttable
  • Features: Keying Shroud
  • Contact Material: Phosphor Bronze
  • Voltage Rating: -
  • Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Color: Black
  • Mounting Type: Through-Hole, Right-Angle
  • Contact Length-Post: 0.090 inches (2.29mm)
  • Insulation Height: 0.135 inches (3.43mm)
  • Temperature Range: -55°C to 125°C
  • REACH: Unaffected
