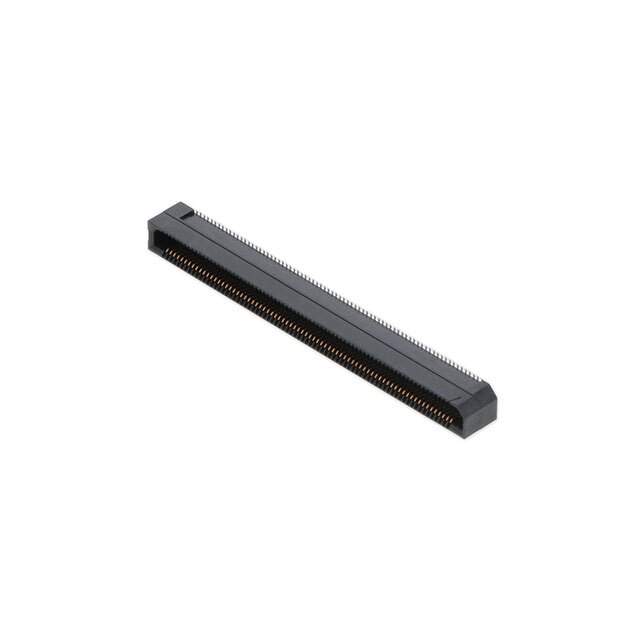

Same model may have multiple batches, images only for reference.

ERF8-075-07.0-S-DV-K-TR

Name: ERF8-075-07.0-S-DV-K-TR
Brand: Samtec Inc.
SKU: 1339723
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ERF8-075-07.0-S-DV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 150POS SMD GOLD / 150 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERF8
Package	Tape & Reel (TR) Cut Tape (CT)
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	150
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	9mm, 12mm, 15mm, 16mm, 22mm
Height Above Board	0.285" (7.24mm)
Base Product Number	ERF8-075
Standard Package	300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1339723-ERF8-075-07.0-S-DV-K-TR
Ultra Librarian 3D Model	Ultra Librarian ERF8-075-07.0-S-DV-K-TR CAD Model

Alternative Products

Description

The Edge Rate™ ERF8 series from Samtec Inc. is a rectangular connector array that is designed for board-to-board applications.

Product: Edge Rate™ ERF8 series
Manufacturer: Samtec Inc.
Application: Board-to-board
Contact Type: Outer shroud socket
Positions: 150
Pitch: 0.031 inches (0.80mm)
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Model: ERF8-075
Features: Board guides and pick and place
Mated Stacking Heights: 9mm to 22mm
Mounting Type: Surface mountable
Packaging: Tape and reel or cut tape
ECCN: EAR99
REACH: Unaffected
