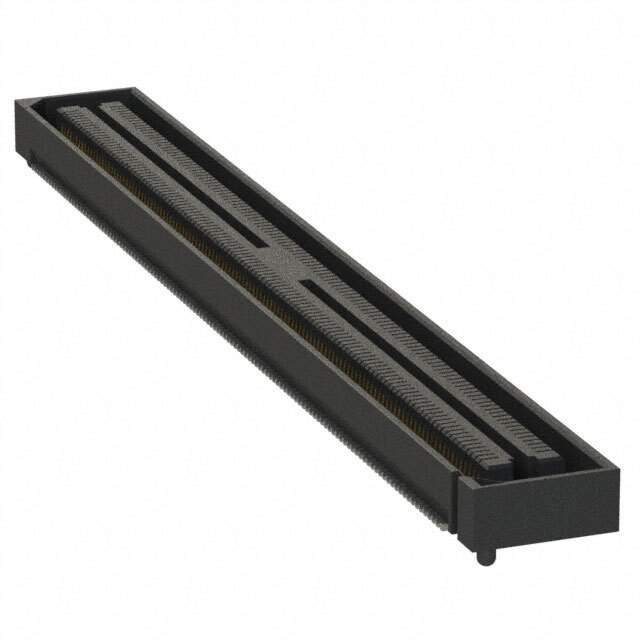

BSH-120-01-L-D-A

Name: BSH-120-01-L-D-A
Brand: Samtec Inc.
SKU: 1337017
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSH-120-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET 240POS SMD GOLD / 240 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Datasheet	BSH-120-01-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BSH
Package	Tray
Connector Type	Socket, Center Strip Contacts
Number of Positions	240
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.128" (3.25mm)
Base Product Number	BSH-120
Standard Package	45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1337017-BSH-120-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian BSH-120-01-L-D-A CAD Model

Alternative Products

Description

The BSH series connector is a socket type connector with a center strip contact.

Series: BSH
Connector Type: Socket
Contact Type: Center Strip
Pitch: 0.020 inches (0.50mm)
Position Count: 240
Number of Rows: 2
Mounting Type: Surface Mount
Height Above Board: 0.128 inches (3.25mm)
Packaging: Tray
Standard Package: 45
Features: Board Guide
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Mated Stacking Height: 5mm
Manufacturer: Samtec Inc.
