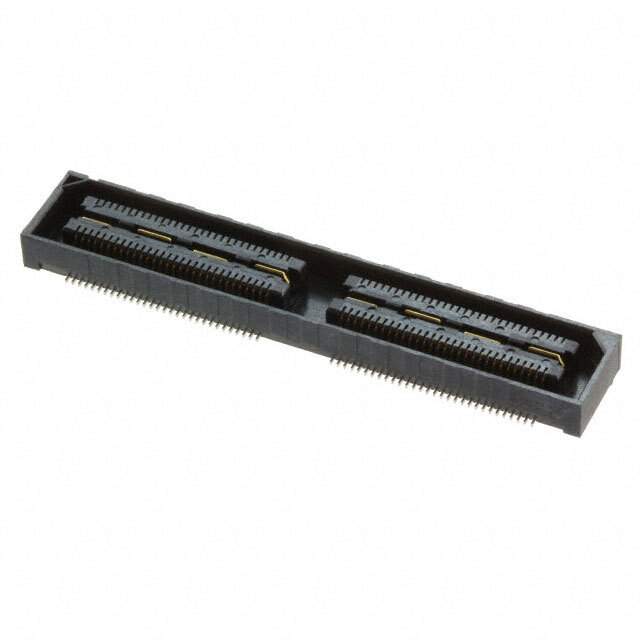

QSH-060-01-H-D-A-K-TR

Name: QSH-060-01-H-D-A-K-TR
Brand: Samtec Inc.
SKU: 1086954
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QSH-060-01-H-D-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	QSH-060-01-H-D-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSH
Package	Tape & Reel
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-060
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM15030TR,SAM15030DKR,SAM15030CT,QSH-060-01-H-D-A-K-FR,QSH-060-01-H-D-A-K-TR-ND
Standard Package	500
Win Source Part Number	1086954-QSH-060-01-H-D-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian QSH-060-01-H-D-A-K-TR CAD Model

Alternative Products

Description

The Q Strip® QSH is a category of Connectors, Interconnects that is designed for Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) applications.

Connector Type: Receptacle, center strip contacts
Pitch: 0.020" (0.50mm)
Number of positions: 120
Features: Board guide, ground bus (plane), pick and place feature
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Packaging: Tape & reel
Standard Package: 500
Height above board: 0.128" (3.25mm)
Mounting Style: SMD (SMT)
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
