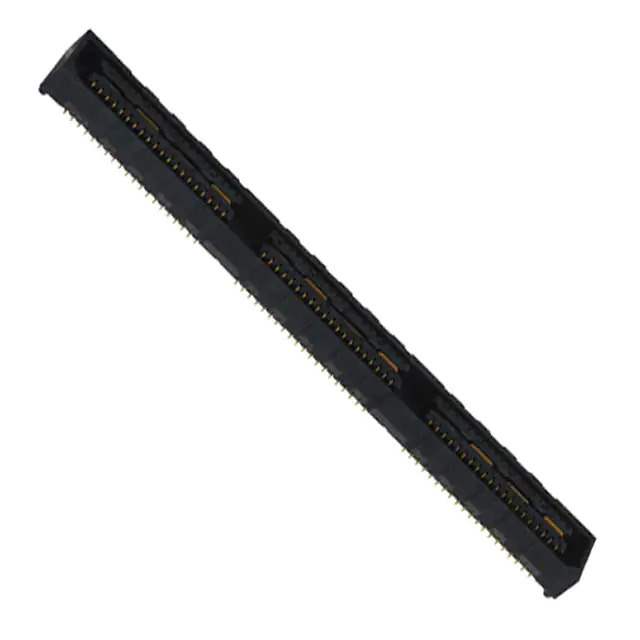

QSE-060-01-L-D-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

QSE-060-01-L-D-A-K-TR

Part No QSE-060-01-L-D-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
QSE-060-01-L-D-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Q Strip® QSE
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board 0.128" (3.25mm)
Base Product Number QSE-060
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 851633-QSE-060-01-L-D-A-K-TR
Ultra Librarian 3D Model Ultra Librarian QSE-060-01-L-D-A-K-TR CAD Model

Description

The QSE-060-01-L-D-A-K-TR is a rectangular connector array designed for board-to-board and mezzanine applications.

  • Product Name: QSE-060-01-L-D-A-K-TR
  • Application: Board-to-board and mezzanine
  • Positions: 120
  • Pitch: 0.031" (0.80mm)
  • Connector Type: Receptacle with center strip contacts
  • Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm
  • Features: Board guide, ground bus (plane), and pick and place
  • Contact Finish: Gold
  • Mounting Type: Surface mount
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Samtec Inc.
  • Product Status: Active
