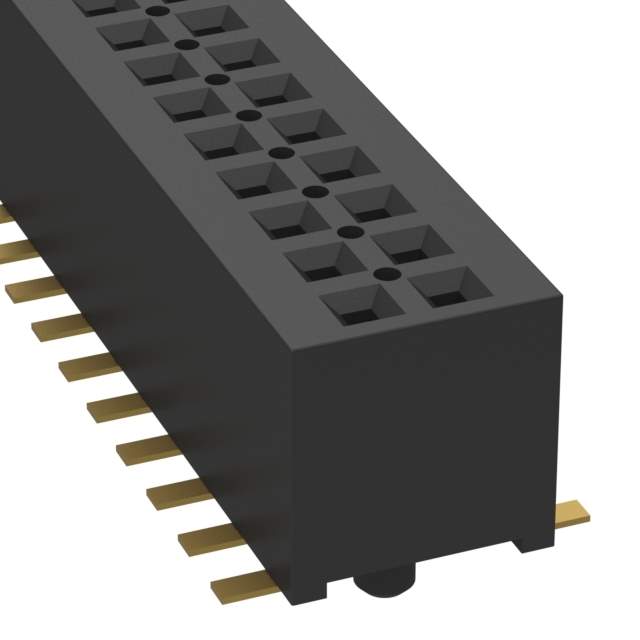

Same model may have multiple batches, images only for reference.

MLE-144-01-G-DV-A

Name: MLE-144-01-G-DV-A
Brand: Samtec Inc.
SKU: 1079093
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MLE-144-01-G-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	1MM MICRO STRIPS / 88 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ MLE
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	88
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.130" (3.30mm)
Temperature Range - Operating	-55°C ~ 125°C
Features	Board Guide
Current Rating (Amps)	2.9A per Contact
Voltage Rating	310VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	MLE-144
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	13
Win Source Part Number	1079093-MLE-144-01-G-DV-A
Ultra Librarian 3D Model	Ultra Librarian MLE-144-01-G-DV-A CAD Model

Alternative Products

Description

The Tiger Eye™ MLE series female socket is a reliable connector designed for board to board connections.

Fastening Type: Push-Pull
Contact Shape: Square
Connector Type: Receptacle
Contact Type: Female Socket
Positions: Loaded All
Contact Material: Beryllium Copper
Voltage Rating: 310VAC
Termination: Solder
Mounting Type: SMD (SMT)
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.039" (1.00mm)
Contact Finish-Mating: Gold, 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
MSL Level: 1 (Unlimited)
Current Rating (Amps): 2.9A per contact
HTSUS: 8536.69.4040
