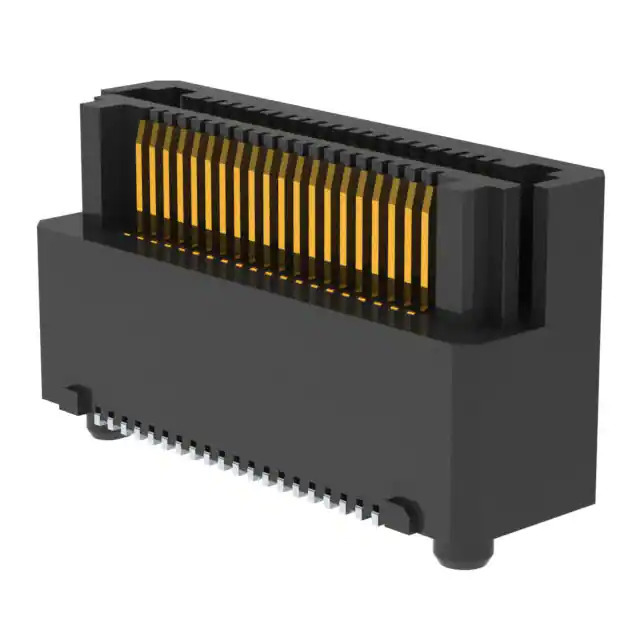

LSHM-120-06.0-L-DV-A-N-K-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

LSHM-120-06.0-L-DV-A-N-K-TR

Part No LSHM-120-06.0-L-DV-A-N-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SELF-MATE 40POS SMD GOLD / 40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet
LSHM-120-06.0-L-DV-A-N-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ LSHM
Package Tape & Reel
Product Status Active
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 8.5mm, 9mm, 10mm, 12mm
Height Above Board 0.293" (7.45mm)
Base Product Number LSHM-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355695-LSHM-120-06.0-L-DV-A-N-K-TR
Ultra Librarian 3D Model Ultra Librarian LSHM-120-06.0-L-DV-A-N-K-TR CAD Model

Description

The Samtec Inc. Razor Beam™ LSHM series rectangular connector array is designed for board-to-board and mezzanine applications.

  • Number of Positions: 40
  • Number of Rows: 2
  • Mounting Type: Surface mount
  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.293" (7.45mm)
  • Contact Finish: Gold (10.0µin/0.25µm)
  • Mating: Self-mating, non-gendered, hermaphroditic
