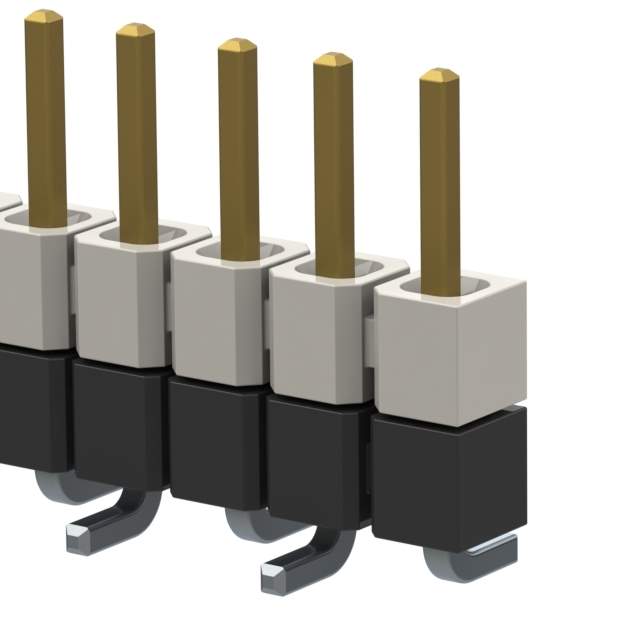

Same model may have multiple batches, images only for reference.

HW-18-17-L-S-261-SM

Name: HW-18-17-L-S-261-SM
Brand: Samtec Inc.
SKU: 1140728
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HW-18-17-L-S-261-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 18POS 0.1 STACK SMD / 18 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
Datasheet	HW-18-17-L-S-261-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Mfr	Samtec Inc.
Series	Flex Stack, HW
Package	Bulk
Number of Positions	18
Pitch	0.100" (2.54mm)
Number of Rows	1
Length - Overall Pin	0.415" (10.541mm)
Length - Post (Mating)	0.154" (3.912mm)
Length - Stack Height	0.261" (6.629mm)
Mounting	SMD (SMT)
Termination	Solder
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10.0µin (0.25µm)
Color	Black
Base Product Number	HW-18-17
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1140728-HW-18-17-L-S-261-SM
Ultra Librarian 3D Model	Ultra Librarian HW-18-17-L-S-261-SM CAD Model

Alternative Products

Description

The HW-18-17-L-S-261-SM is a rectangular connector component manufactured by Samtec Inc..

Component Type: Board Spacer and Stacker
Pitch: 0.100 inches
Color: Black
Termination: Solder
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
Applications: Power Management
