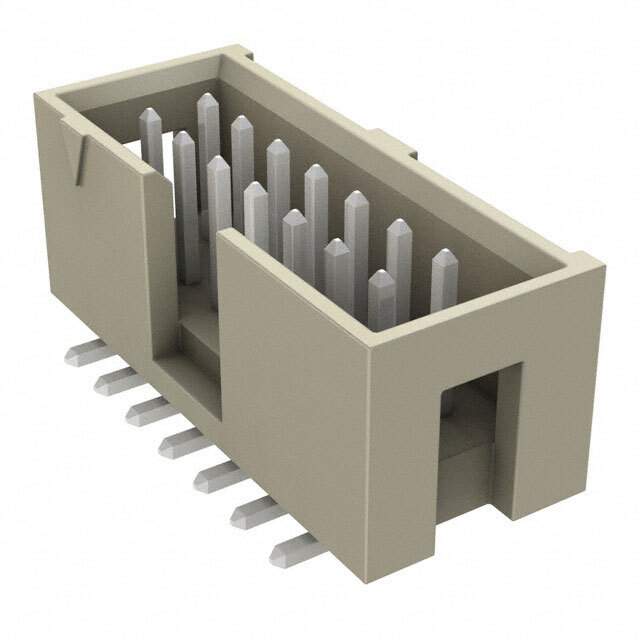

Same model may have multiple batches, images only for reference.

HTST-107-01-T-DV-P-TR

Name: HTST-107-01-T-DV-P-TR
Brand: Samtec Inc.
SKU: 1016356
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTST-107-01-T-DV-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 14POS 2.54MM / Connector Header Surface Mount 14 position 0.100" (2.54mm)
Datasheet	HTST-107-01-T-DV-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-107
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM14029TR,HTST-107-01-T-DV-P-FR,SAM14029DKR,SAM14029CT,HTST-107-01-T-DV-P-TR-ND
Standard Package	150
Win Source Part Number	1016356-HTST-107-01-T-DV-P-TR
Ultra Librarian 3D Model	Ultra Librarian HTST-107-01-T-DV-P-TR CAD Model

Alternative Products

Description

The Flex Stack HTST series connector from Samtec Inc. is a header type connector with a male pin contact type.

Connector Type: header
Contact Type: male pin
Positions Loaded: 14
Rows: 2
Current Rating: 3.4A per contact
Pitch: 0.100 inches
Contact Finish: tin
Insulation Material: liquid crystal polymer (LCP)
Temperature Range: -55°C to 105°C
Packaging: tape and reel
Application: board to cable/wire
