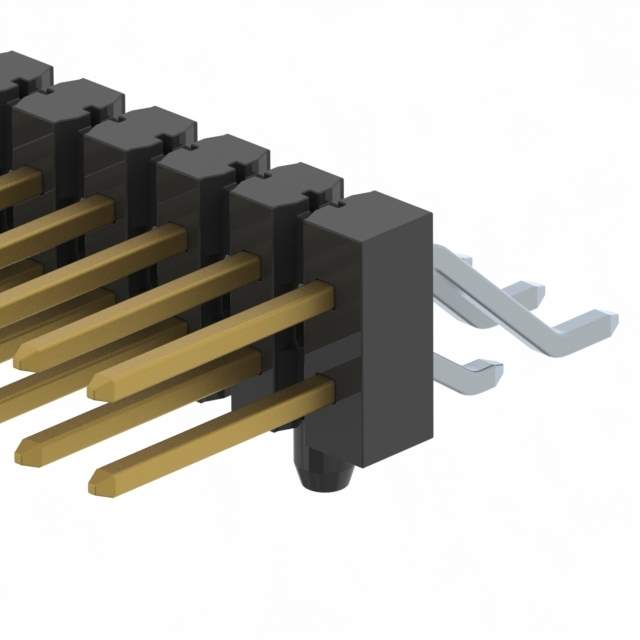

The FTSH series connector from Samtec Inc. is a 20-position header type connector with a male pin contact type. It has a push-pull fastening type and a surface mount, right angle mounting style. The connector is made up of phosphor bronze contact material and has a flammability rating of UL94 V-0. The insulation material used in this connector is liquid crystal polymer (LCP) and has a pitch of 0.050" (1.27mm). The contact finish is gold and has a thickness of 10.0μin (0.25μm) for mating and tin for post. The connector has a temperature range of -55°C ~ 125°C and has a current rating of 3.4A per contact.

• Positions: 20
• Contact Type: Male Pin
• Mounting Style: Surface Mount, Right Angle
• Pitch: 0.050" (1.27mm)
• Operating Temperature: -55°C ~ 125°C
• Current Rating per Contact: 3.4A
