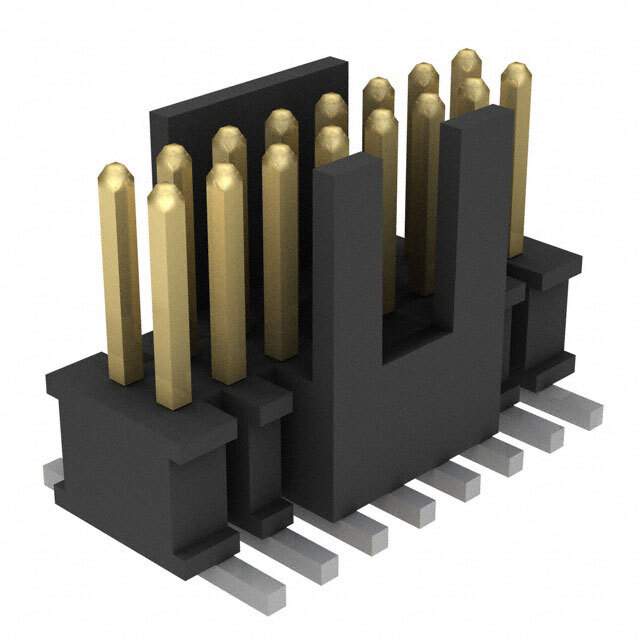

The 1382107-FTSH-108-01-F-DV-K-P-TR is a male pin header connector from Samtec Inc.'s FTSH series.

• Positions: It has 16 positions and 2 rows, and it is a cuttable header connector.
• Contact Type: The contact type is male pin, and it is solder terminated.
• Fastening Type: The fastening type is push-pull, and it comes in a tape & reel package.
• Contact Material: The contact material is phosphor bronze.
• Insulation Material: The insulation material is liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
• Pitch: The connector has a pitch of 0.050" (1.27mm).
• Mating Contact Finish: It has a mating contact finish of gold with a thickness of 3.00µin (0.076µm).
• Mounting Type: It is surface mountable and has a shrouded mounting type.
• Temperature Range: The temperature range for operation is -55°C to 125°C.
• Manufacturer: The 1382107-FTSH-108-01-F-DV-K-P-TR is manufactured by Samtec Inc.
