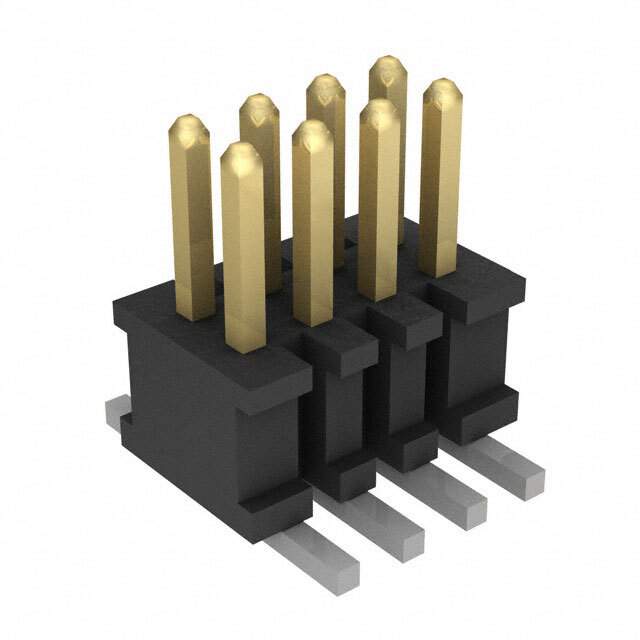

Same model may have multiple batches, images only for reference.

FTSH-104-01-F-DV

Name: FTSH-104-01-F-DV
Brand: Samtec Inc.
SKU: 1382104
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTSH-104-01-F-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 1.27MM / Connector Header Surface Mount 8 position 0.050" (1.27mm)
Datasheet	FTSH-104-01-F-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	FTSH-104
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Standard Package	113 pcs
Win Source Part Number	1382104-FTSH-104-01-F-DV
Ultra Librarian 3D Model	Ultra Librarian FTSH-104-01-F-DV CAD Model

Alternative Products

Description

The FTSH-104-01-F-DV is an 8-position male pin header connector from Samtec Inc.'s FTSH series.

Positions: 8
Connection Type: Board-to-Board or Cable
Pitch: 0.050" (1.27mm)
Feature: Cuttable Header
Current Rating: 3.4A per contact
Contact Material: Phosphor Bronze
Contact Finish: Gold
Mounting Type: Surface Mount
Package: Tube
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 125°C
