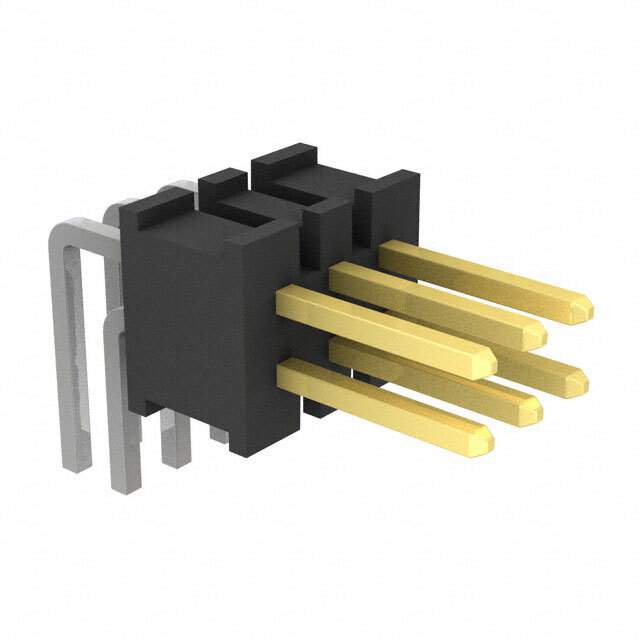

Same model may have multiple batches, images only for reference.

FTSH-103-02-L-D-RA

Name: FTSH-103-02-L-D-RA
Brand: Samtec Inc.
SKU: 1182176
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-103-02-L-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 1.27MM / Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm)
Datasheet	FTSH-103-02-L-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Contact Length - Post	0.090" (2.29mm)
Insulation Height	0.135" (3.43mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-103
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM11246,FTSH-103-02-L-D-RA-ND
Standard Package	1
Win Source Part Number	1182176-FTSH-103-02-L-D-RA
Ultra Librarian 3D Model	Ultra Librarian FTSH-103-02-L-D-RA CAD Model

Alternative Products

Description

The Samtec Inc. FTSH-103-02-L-D-RA is a rectangular connector with headers and male pins.

Manufacturer: Samtec Inc.
Series: FTSH
Number of Positions: 6
Pitch (Mating): 0.050 inches
Contact Finish (Mating): Gold
Contact Finish Thickness (Mating): 10.0 micro inches
Mounting Type: Through-Hole
Shrouding: Unshrouded
Contact Length (Post): 0.090 inches
Insulation Height: 0.135 inches
Base Product Number: FTSH-103
