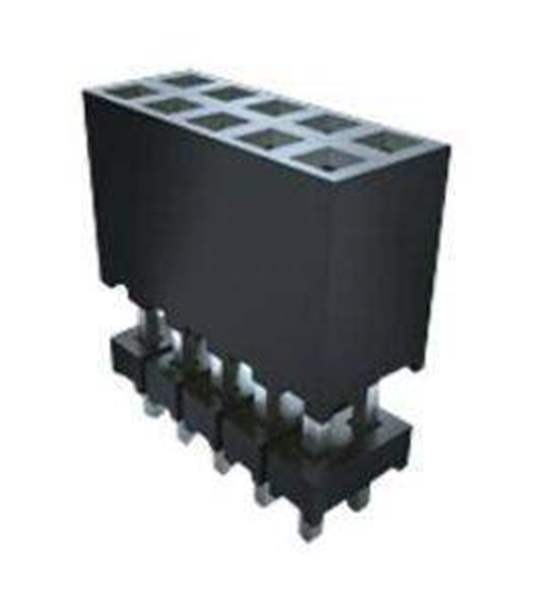

ESQT-117-02-L-D-543 Samtec Inc.
Same model may have multiple batches, images only for reference.

ESQT-117-02-L-D-543

Part No ESQT-117-02-L-D-543
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 34POS 0.079 GOLD PCB
Datasheet
ESQT-117-02-L-D-543 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209078-ESQT-117-02-L-D-543
Manufacturer Samtec Inc.
Category Connectors, Interconnects -Rectangular Connectors -Headers, Receptacles, Female Socket
Package Tube
Product Status Active
Connector Type Elevated Socket
Contact Type Forked
Style Board to Board or Cable
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Ultra Librarian 3D Model Ultra Librarian ESQT-117-02-L-D-543 CAD Model

Description

34 Position Elevated Socket Connector 0.079" (2.00mm) Through Hole Gold
