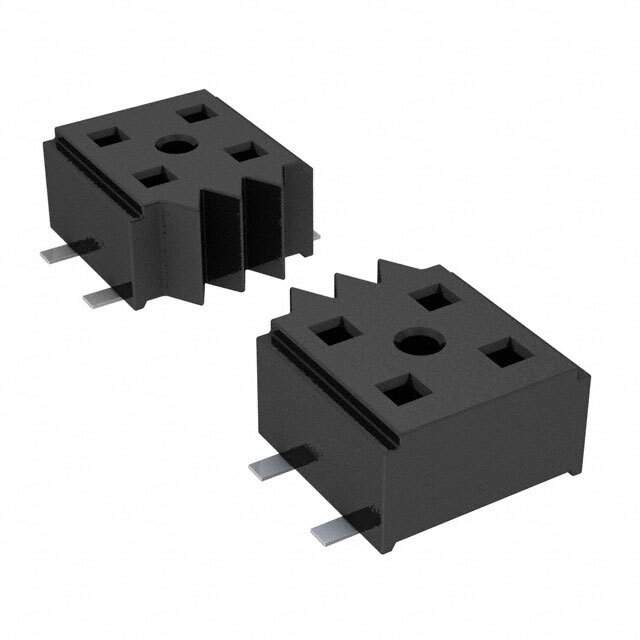

CLT-130-02-L-D-A-P-TR Real Image
Same model may have multiple batches, images only for reference.

CLT-130-02-L-D-A-P-TR

Part No CLT-130-02-L-D-A-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description 2MM SOCKET STRIPS / Conn Socket Strip SKT 60 POS 2mm Solder ST SMD TIGER CLAW™ T/R
Datasheet
CLT-130-02-L-D-A-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series CLT
Packaging Reel package
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide, Pick and Place
Current Rating 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Win Source Part Number 771607-CLT-130-02-L-D-A-P-TR
Popularity Medium
Supply and Demand Status Balance
Family Name CLT
Introduction Date March 22, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CLT-130-02-L-D-A-P-TR CAD Model

Description

The Samtec Inc. CLT-130-02-L-D-A-P-TR is a high-quality receptacle connector designed for board-to-board connections.

  • Contact Shape: Square
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Pitch: 0.079 inches (2.00mm)
  • Rows: Two
  • Positions: 60
  • Positions Loaded: All
  • Temperature Range: -55°C to 125°C
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Fastening Type: Push-pull
  • Mounting: SMD
  • Packaging: Reel
  • Current Rating: 4.1A per contact
  • Applications: Industrial and telecommunications equipment
