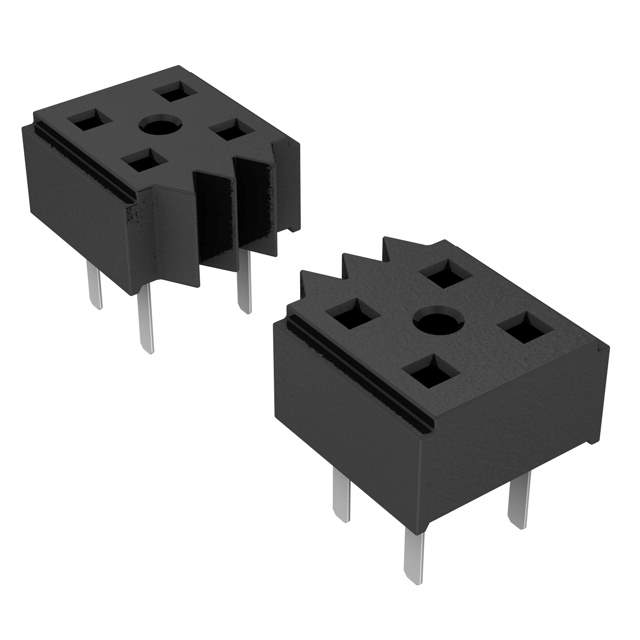

CLT-110-01-L-D Real Image
Same model may have multiple batches, images only for reference.

CLT-110-01-L-D

Part No CLT-110-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.079 GOLD PCB / 20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
CLT-110-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Contact Length - Post 0.085" (2.16mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1164-10
Standard Package 1
Win Source Part Number 1002596-CLT-110-01-L-D
Ultra Librarian 3D Model Ultra Librarian CLT-110-01-L-D CAD Model

Description

This electronic component is a CLT-110-01-L-D connector manufactured by Samtec Inc.

  • Type: rectangular connector
  • Positions: 20
  • Rows: 2
  • Contact Type: female socket
  • Application: board to board applications
  • Current Rating: 4.1A per contact
  • Operating Temperature Range: -55°C to 125°C
