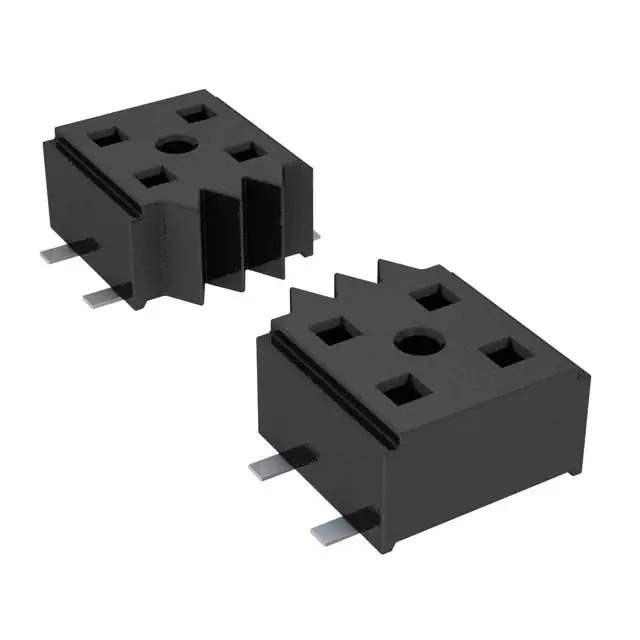

CLT-105-02-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

CLT-105-02-L-D-K-TR

Part No CLT-105-02-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.079 GOLD SMD / 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
CLT-105-02-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-105
Standard Package 1,650 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 866842-CLT-105-02-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian CLT-105-02-L-D-K-TR CAD Model

Description

The Samtec Inc. 866842-CLT-105-02-L-D-K-TR is a rectangular connector suitable for board-to-board applications.

  • Positions: 10
  • Features: Pick and Place
  • Connector Type: Receptacle
  • Mounting Type: Surface Mount
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
