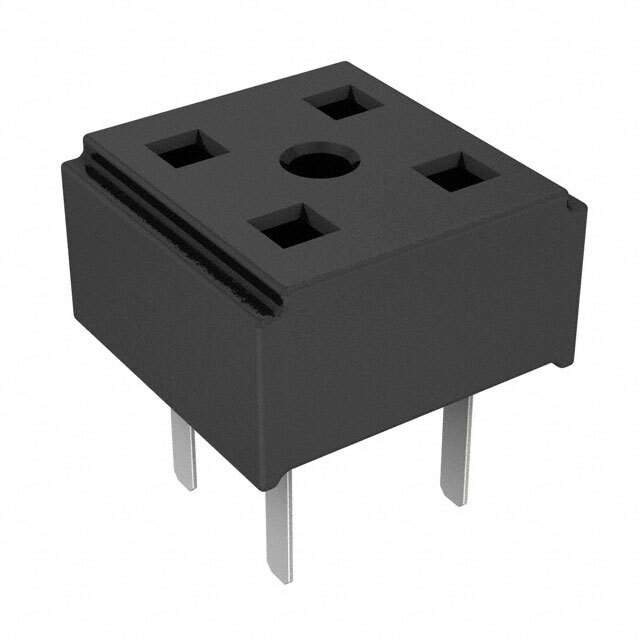

CLT-102-01-L-D Real Image
Same model may have multiple batches, images only for reference.

CLT-102-01-L-D

Part No CLT-102-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.079 GOLD PCB / 4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
CLT-102-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLT
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.083" (2.10mm)
Contact Length - Post 0.085" (2.16mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLT-102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1164-02
Standard Package 1
Win Source Part Number 1182840-CLT-102-01-L-D
Ultra Librarian 3D Model Ultra Librarian CLT-102-01-L-D CAD Model

Description

The Samtec Inc. 1182840-CLT-102-01-L-D is a rectangular connector with 4 positions.

  • Manufacturer: Samtec Inc.
  • Positions: 4
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Termination: Solder
  • Mounting Type: Through Hole
  • Contact Finish (Mating): Gold (10.0μin / 0.25μm)
  • Contact Finish (Post): Tin
  • Current Rating: 4.1A per contact
  • Temperature Range: -55°C to 125°C
