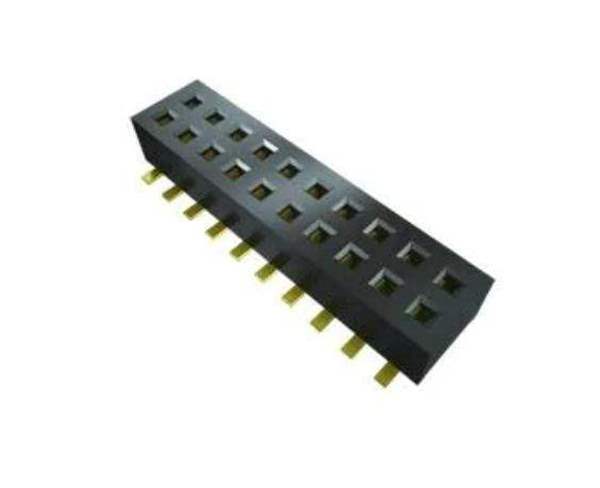

CLP-105-02-G-D-PA Samtec
Same model may have multiple batches, images only for reference.

CLP-105-02-G-D-PA

Part No CLP-105-02-G-D-PA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description Headers & Wire Housings Low Profile Dual-Wipe Socket, .050" Pitch
Datasheet
CLP-105-02-G-D-PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201498-CLP-105-02-G-D-PA
Manufacturer Samtec
Category Headers & Wire Housings
Type Socket
Number of Positions 10 Position
Pitch 1.27 mm
Number of Rows 2 Row
Mounting Style SMD/SMT
Termination Style Solder
Packaging Tray
Current Rating 3.4 A
Ultra Librarian 3D Model Ultra Librarian CLP-105-02-G-D-PA CAD Model

Description

The Samtec socket header is a high-quality connector designed for reliable connections in electronic devices.

  • Positions: 10
  • Pitch: 1.27mm
  • Termination Style: Solder
  • Mounting Style: Surface Mount (SMD/SMT)
  • Current Rating: 3.4A
  • Package: Tray
  • Product Status: Active
