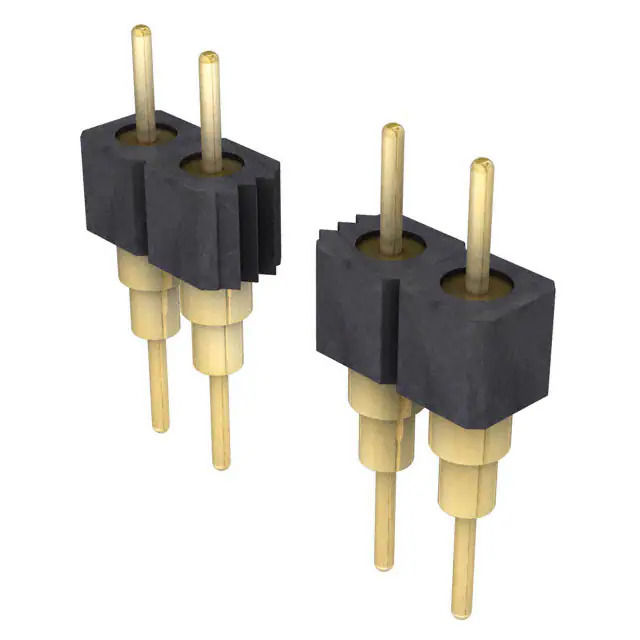

Same model may have multiple batches, images only for reference.
BBS-132-G-A Samtec Inc.
Same model may have multiple batches, images only for reference.

BBS-132-G-A

Part No BBS-132-G-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 32POS 2.54MM / Connector Header Through Hole 32 position 0.100" (2.54mm)
Datasheet
BBS-132-G-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series BBS
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 32
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.460" (11.68mm)
Insulation Height 0.211" (5.35mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Nickel
Contact Material -
Insulation Material Polyester, Glass Filled
Features -
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 50.0µin (1.27µm)
Applications -
Base Product Number BBS-132
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355340-BBS-132-G-A
Ultra Librarian 3D Model Ultra Librarian BBS-132-G-A CAD Model

Description

The Samtec Inc. BBS-132-G-A is a male pin header connector from the BBS series.

  • Series: BBS
  • Pitch: 0.100" (2.54mm)
  • Positions: 32
  • Rows: Single
  • Shrouding: Unshrouded
  • Fastening Type: Push-Pull
  • Mating Contact Length: 0.125" (3.18mm)
  • Post Contact Length: 0.125" (3.18mm)
  • Overall Contact Length: 0.460" (11.68mm)
  • Insulation Height: 0.211" (5.35mm)
  • Insulation Material: Polyester with Glass Filling
  • Insulation Color: Black
  • Mating Contact Finish: Gold (20.0µin, 0.51µm)
  • Post Contact Finish: Nickel
  • Mounting Type: Through Hole
  • Termination: Solder
  • Application: Board to Board
  • REACH: Affected
  • ECCN: EAR99
