Same model may have multiple batches, images only for reference.

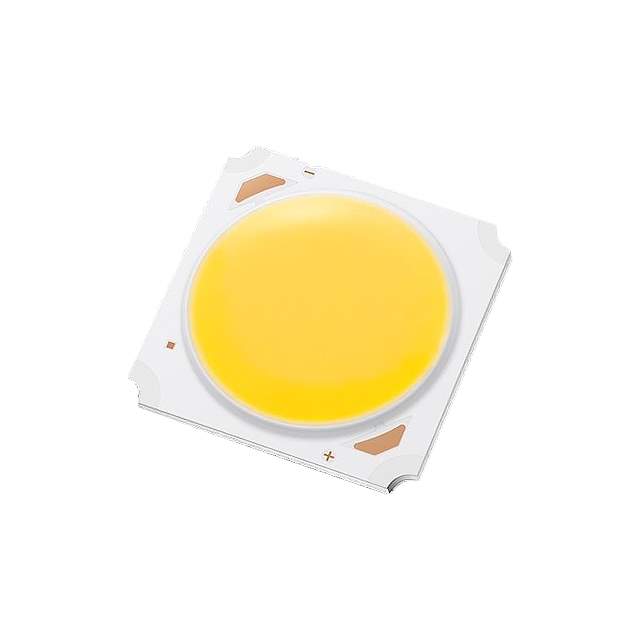

SPHWW1HDNE25YHV34J Real Image
Same model may have multiple batches, images only for reference.

SPHWW1HDNE25YHV34J

Part No SPHWW1HDNE25YHV34J
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED 3.5X3.5 3000K 80CRI LH351A / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LC040B
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K
Configuration Square
Luminous Flux @ Current/Temperature 4533lm (3810lm ~ 5255lm)
Current - Test 1.08A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1.62A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 21.50mm L x 21.50mm W
Height 1.50mm
Light Emitting Surface (LES) 17.00mm Dia
Lens Type Flat
Base Product Number SPHWW1
Standard Package 320
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240583-SPHWW1HDNE25YHV34J
Ultra Librarian 3D Model Ultra Librarian SPHWW1HDNE25YHV34J CAD Model

Description

The LC040B Chip On Board (COB) LED module from Samsung Semiconductor, Inc. is a high-quality lighting solution for optoelectronics applications.

  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Voltage-Forward (Vf): 35.5V (typ)
  • Current-Max: 1.62A
  • CCT: 3000K
  • Light Emitting Surface (LES): 17.00mm in diameter
  • Height: 1.50mm
  • Luminous Flux: 4533lm (typ) @ current/temperature
  • Lumens/Watt: 118 lm/W @ current-test
  • MSL Level: 2A (4 weeks)
  • HTSUS: 8541.41.0000
