Same model may have multiple batches, images only for reference.

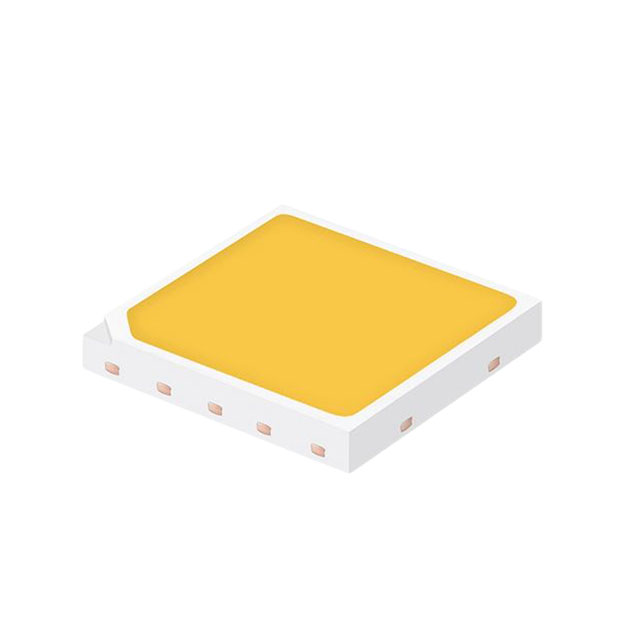

SPHWH1L5N603YER5A2 Real Image
Same model may have multiple batches, images only for reference.

SPHWH1L5N603YER5A2

Part No SPHWH1L5N603YER5A2
Manufacturer Samsung
Catalog LED Lighting - White
Description LED WHITE HP 5000K 70CRI SMD / LED Lighting series White, Cool 5000K 5-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)
Datasheet
SPHWH1L5N603YER5A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH502C
Package Tape & Reel
Color White, Cool
CCT (K) 5000K 5-Step MacAdam Ellipse
Current - Test 640mA
Voltage - Forward (Vf) (Typ) 6.1V
CRI (Color Rendering Index) 70
Current - Max 880mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 3°C/W
Base Product Number SPHWH1
Other Names 1510-SPHWH1L5N603YER5A2DKR,1510-SPHWH1L5N603YER5A2CT,1510-SPHWH1L5N603YER5A2TR
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1239879-SPHWH1L5N603YER5A2
Ultra Librarian 3D Model Ultra Librarian SPHWH1L5N603YER5A2 CAD Model

Description

The Samsung LH502C LED lighting component is a surface-mount device that emits cool white light.

  • Package: Tape and reel
  • Maximum Height: 0.031 inches
  • Maximum Current: 880mA
  • Typical Forward Voltage: 6.1V
  • Viewing Angle: 120 degrees
  • Color Temperature: 5000K with a 5-step MacAdam Ellipse
  • Luminous Flux: Not specified
  • Luminous Efficacy: Not specified
  • Color Rendering Index: 70
  • Thermal Resistance of the Package: 3 degrees Celsius per watt
  • Package: 2020 (5050 metric)
