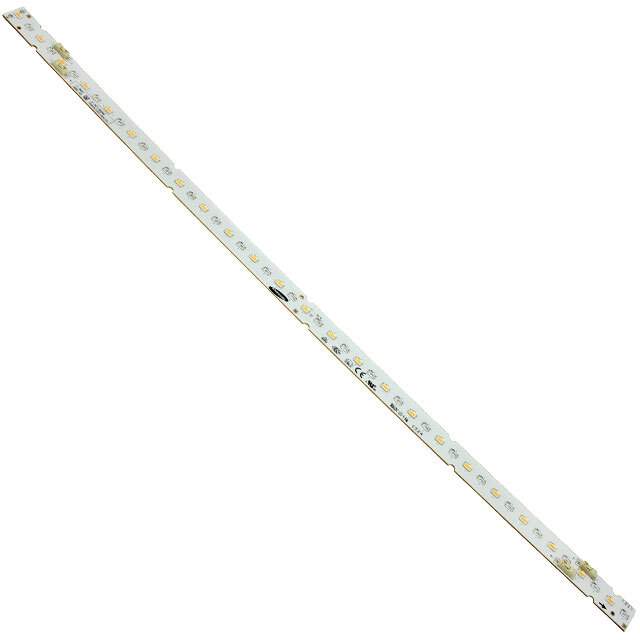

SI-B9T111560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B9T111560WW

Part No SI-B9T111560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED 4000K 90CRI LM561B / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SI-B9T111560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562F
Package Tray
Product Status Obsolete
Type LED Module
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1170lm (Typ)
Current - Test 450mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.7V
Lumens/Watt @ Current - Test 105 lm/W
Current - Max 450mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 560.00mm L x 18.00mm W
Height 5.80mm
Lens Type Flat
Other Names 1510-1210
Standard Package 280
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1240424-SI-B9T111560WW
Ultra Librarian 3D Model Ultra Librarian SI-B9T111560WW CAD Model

Description

The SI-B9T111560WW is an LED lighting module manufactured by Samsung Semiconductor, Inc.

  • Series: LT-M562F
  • Configuration: linear light strip
  • Viewing Angle: 115 degrees
  • Voltage Forward: 24.7V
  • Color Rendering Index: 90
  • CCT: 4000K 3-Step MacAdam Ellipse
  • Characteristics: high luminous flux and reliable performance
