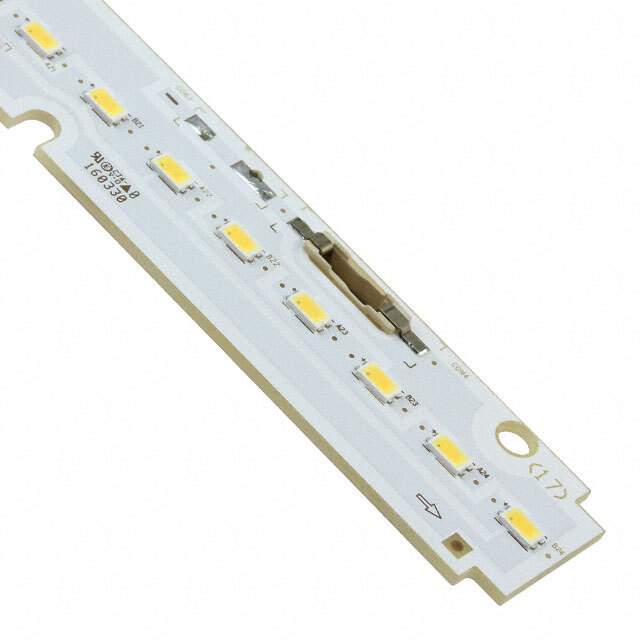

SI-B8R14256HWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R14256HWW

Part No SI-B8R14256HWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 5000K 2290LM BACK WIRE / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R14256HWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S562H
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2290lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 46.9V
Lumens/Watt @ Current - Test 163 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.70mm L x 23.80mm W
Height 7.40mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-1370,SI-B8R14256HWW
Standard Package 128
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240392-SI-B8R14256HWW
Ultra Librarian 3D Model Ultra Librarian SI-B8R14256HWW CAD Model

Description

The LT-S562H series from Samsung Semiconductor, Inc. is a high-quality LED lighting module.

  • Configuration: Linear light strip
  • Viewing Angle: 115°
  • CCT (K): 5000K 3-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 80
  • Lumens/Watt @ Current-Test: 163 lm/W
  • For New Designs: No
  • Package: Tray
  • Standard Package: 128
  • Current Max: 540mA
  • Voltage Forward (Vf) (Typ): 46.9V
  • Dimension: 559.70mm L x 23.80mm W
  • Height: 7.40mm
