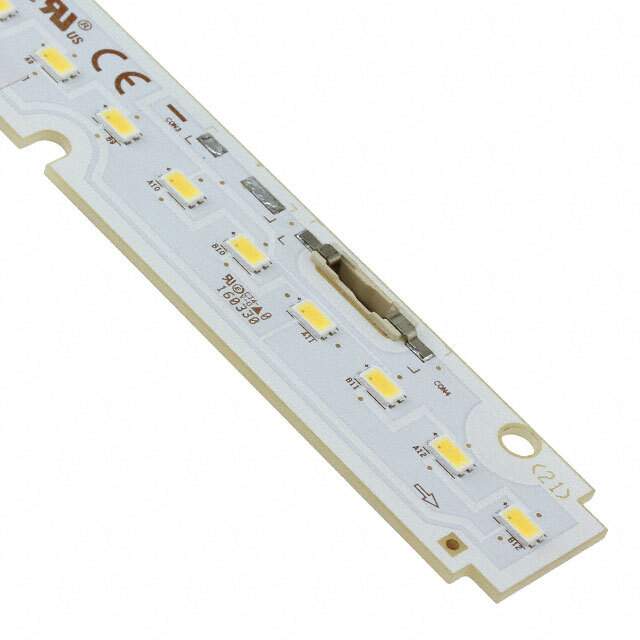

SI-B8R07228HWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R07228HWW

Part No SI-B8R07228HWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 5000K 1140LM BACK WIRE / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R07228HWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S282H
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1140lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 23.4V
Lumens/Watt @ Current - Test 162 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 279.70mm L x 23.80mm W
Height 7.40mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-1363,SI-B8R07228HWW
Standard Package 128
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240402-SI-B8R07228HWW
Ultra Librarian 3D Model Ultra Librarian SI-B8R07228HWW CAD Model

Description

The LT-S282H LED module is a linear light strip type that features a white cool color with a 5000K 3-Step MacAdam Ellipse CCT.

  • Color: White Cool
  • CCT: 5000K 3-Step MacAdam Ellipse
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 23.4V (typical)
  • Maximum Current: 540mA
  • Lens Type: Flat
  • Height: 7.40mm
  • Connector: Yes
  • Package: Tray
  • Standard Package: 128
  • Manufacturer: Samsung Semiconductor, Inc.
  • For New Designs: No
  • Luminous Flux: 1140lm (typ) @ current/temperature
