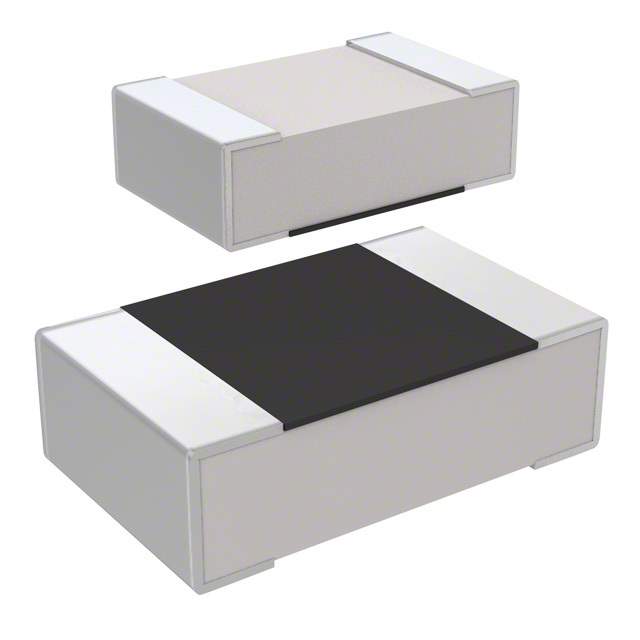

RC2012F821CS Real Image
Same model may have multiple batches, images only for reference.

RC2012F821CS

Part No RC2012F821CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 1% 1/8W 0805  /  820 Ohms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Datasheet
RC2012F821CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 820 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5267-6,1276-5267-2,1276-5267-1
Standard Package 5,000
Win Source Part Number 972185-RC2012F821CS
Ultra Librarian 3D Model Ultra Librarian RC2012F821CS CAD Model

Description

The Samsung Electro-Mechanics RC2012F821CS is a moisture-resistant chip resistor designed for surface mount applications.

  • Resistance: 820 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Composition: Thick Film
  • Terminations: 2
  • Packaging: Tape and Reel
  • Height: 0.026" (0.65mm)
  • Package/Case: 0805 (2012 metric)
  • Temperature Range: -55°C to 155°C
  • REACH: REACH unaffected
  • Applications: Automotive, Industrial, and Consumer Electronics
