Same model may have multiple batches, images only for reference.

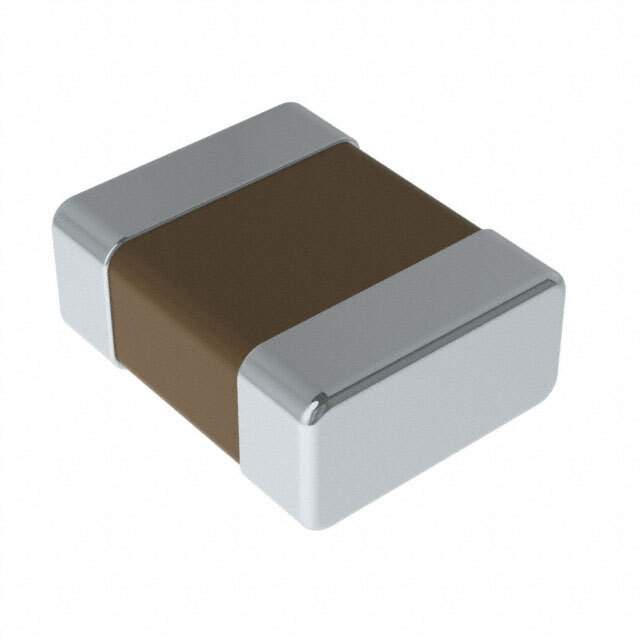

CIGT201610LMR47MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT201610LMR47MNE

Part No CIGT201610LMR47MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 470NH 3A 41 MOHM SMD
Datasheet
CIGT201610LMR47MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 470 nH Unshielded Thin Film Inductor 3 A 41mOhm Max 0806 (2016 Metric) -
Manufacturer Samsung
Series CIGT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 0806 (2016 Metric)
Case / Package 0806 (2016 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 1276-6917-1, 1276-6917-2, 1276-6917-6
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866412-CIGT201610LMR47MNE
Ultra Librarian 3D Model Ultra Librarian CIGT201610LMR47MNE CAD Model

Description

The Samsung CIGT is an inductor that is designed for use in a wide range of electronic applications.

  • Win Source Part Number: 866412-CIGT201610LMR47MNE
  • Type: 470 nH unshielded thin film inductor
  • Mounting: Surface Mount
  • Package: 0806 (2016 Metric)
  • Quantity per Package: 3000
  • Temperature Range: -40°C ~ 125°C
  • Manufacturer: Samsung
