Same model may have multiple batches, images only for reference.

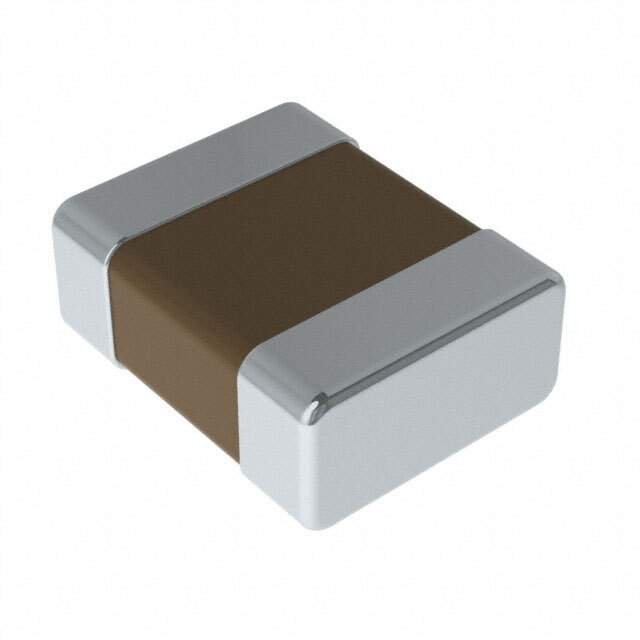

CIGT201610LMR24MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT201610LMR24MNE

Part No CIGT201610LMR24MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 240NH 4A 23 MOHM SMD / 240 nH Unshielded Thin Film Inductor 4 A 23mOhm Max 0806 (2016 Metric)
Datasheet
CIGT201610LMR24MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIGT
Package Tape & Reel
Type Thin Film
Material - Core Metal Composite
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 5.3A
Shielding Unshielded
DC Resistance (DCR) 23mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1276-6916-2,1276-6916-1,1276-6916-6
Standard Package 3,000
Win Source Part Number 977283-CIGT201610LMR24MNE
Ultra Librarian 3D Model Ultra Librarian CIGT201610LMR24MNE CAD Model

Description

The Samsung Electro-Mechanics CIGT series offers a fixed inductor for your needs.

  • Inductance: 240 nH
  • Tolerance: ±20%
  • DC Resistance: 23mOhm Max
  • Current Rating: 4 A
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height-Seated (Max): 0.039" (1.00mm)
  • Material-Core: Metal Composite
  • Temperature Range: -40°C ~ 125°C
  • Part Number: CIGT201610LMR24MNE
  • Package: Tape & Reel
