Same model may have multiple batches, images only for reference.

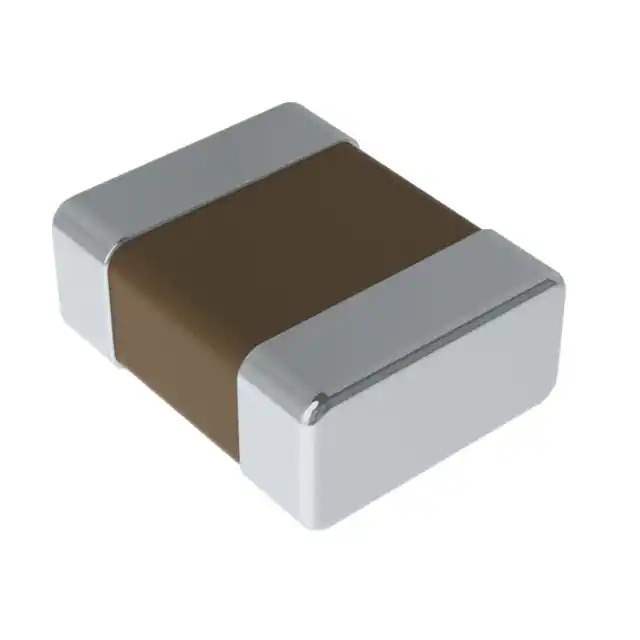

CIGT201610EH2R2MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT201610EH2R2MNE

Part No CIGT201610EH2R2MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.5A 87MOHM SMD
Datasheet
CIGT201610EH2R2MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Samsung
Series CIGT
Package Tape & Reel
Product Status Active
Type Thin Film
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2.9A
Shielding Unshielded
DC Resistance (DCR) 87mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 850124-CIGT201610EH2R2MNE
Ultra Librarian 3D Model Ultra Librarian CIGT201610EH2R2MNE CAD Model

Description

The CIGT201610EH2R2MNE is a fixed inductor from Samsung's CIGT series.

  • Manufacturer: Samsung Electro-Mechanics
  • Series: CIGT
  • Type: Thin Film
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Size / Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height - Seated (Max): 0.039" (1.00mm)
  • Shielding: Unshielded
  • Packaging: Tape & Reel (TR)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 125°C
  • Product Status: Active
  • Standard Package: 3,000
