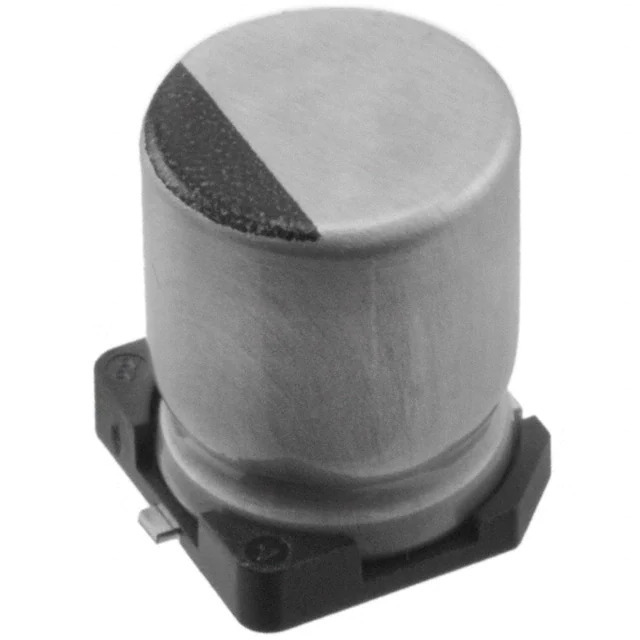

50TZV100M8X10.5 Rubycon
Same model may have multiple batches, images only for reference.

50TZV100M8X10.5

Part No 50TZV100M8X10.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360161-50TZV100M8X10.5
Ultra Librarian 3D Model Ultra Librarian 50TZV100M8X10.5 CAD Model

Description

The Rubycon 1360161-50TZV100M8X10.5 is an aluminum electrolytic capacitor with a capacitance of 100 μF and a voltage rating of 50 V.

  • Capacitance: 100 μF
  • Voltage Rating: 50 V
  • Series: TZV
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 105°C
  • Application: Automotive
  • Ripple Current (Low Frequency): 175 mA @ 120 Hz
  • Ripple Current (High Frequency): 350 mA @ 100 kHz
  • ESR: Not Specified
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200: Yes
  • REACH Compliance: Yes
  • Package Size: 0.315" (8.00mm) Diameter x 0.413" (10.50mm) Height
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
