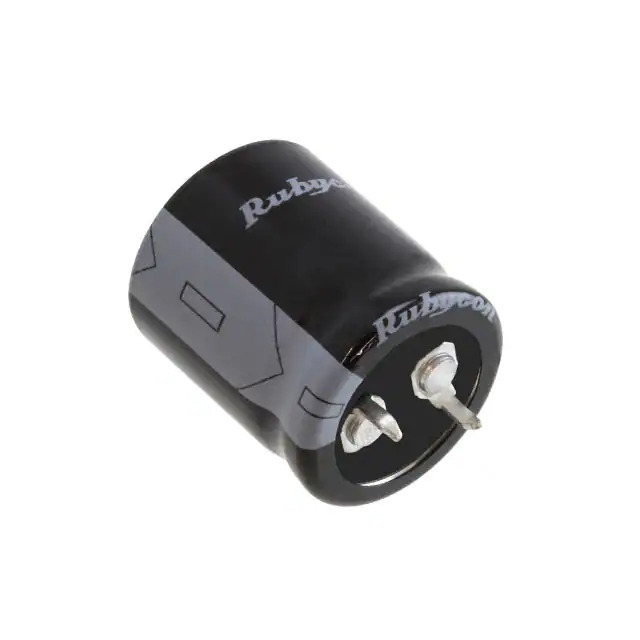

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.1 A @ 120 Hz
Ripple Current @ High Frequency 1.54 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360767-450MXG150MEFCSN30X25
Ultra Librarian 3D Model Ultra Librarian 450MXG150MEFCSN30X25 CAD Model

Description

The 1360767-450MXG150MEFCSN30X25 is a radial, snap-in aluminum electrolytic capacitor from the MXG series manufactured by Rubycon.

  • Capacitance: 150 µF
  • Voltage - Rated: 450 V
  • Application: General Purpose
  • Tolerance: ±20%
  • Operating Temperature: -25°C ~ 105°C
  • Ripple Current - Low Frequency: 1.1 A @ 120 Hz
  • Ripple Current - High Frequency: 1.54 A @ 10 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 1.181" (30.00mm) Diameter
  • Height - Seated (Max): 1.063" (27.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
