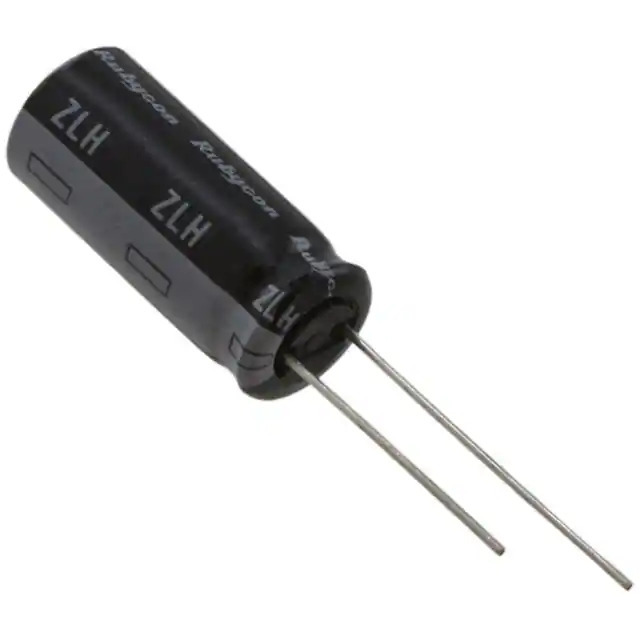

Same model may have multiple batches, images only for reference.

25ZLH1000MEFC10X23

Name: 25ZLH1000MEFC10X23
Brand: Rubycon
SKU: 1357811
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	25ZLH1000MEFC10X23
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 25V RADIAL / 1000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Product Status	Active
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.35 A @ 120 Hz
Ripple Current @ High Frequency	2.25 A @ 100 kHz
Impedance	18 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357811-25ZLH1000MEFC10X23
Ultra Librarian 3D Model	Ultra Librarian 25ZLH1000MEFC10X23 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-capacity component designed for general-purpose applications.

Capacitance: 1000 µF
Voltage Rating: 25 V
Tolerance: ±20%
Temperature Range: -40°C to 105°C
Package: Radial, Can
Mounting Type: Through Hole
Lead Spacing: 0.197" (5.00mm)
Size: 0.394" Dia (10.00mm)
Lifetime: 10000 hours @ 105°C
Product Status: Active
REACH: Unaffected
