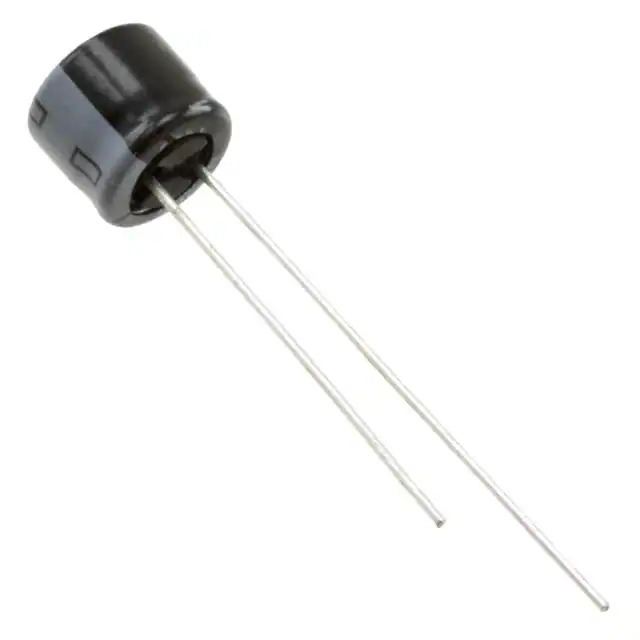

25MH522MEFC6.3X5 Rubycon
Same model may have multiple batches, images only for reference.

25MH522MEFC6.3X5

Part No 25MH522MEFC6.3X5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 25V RADIAL / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MH5
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 44 mA @ 120 Hz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357742-25MH522MEFC6.3X5
Ultra Librarian 3D Model Ultra Librarian 25MH522MEFC6.3X5 CAD Model

Description

The Rubycon 1357742-25MH522MEFC6.3X5 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 25 V
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current: 44 mA @ low frequency (120 Hz)
  • Lifetime: 1,000 hours @ 105°C
  • Package: Radial, Can
  • Lead Spacing: 2.50mm
  • Size: 6.30mm (diameter) x 6.50mm (height)
  • Series: MH5
  • Status: Active
