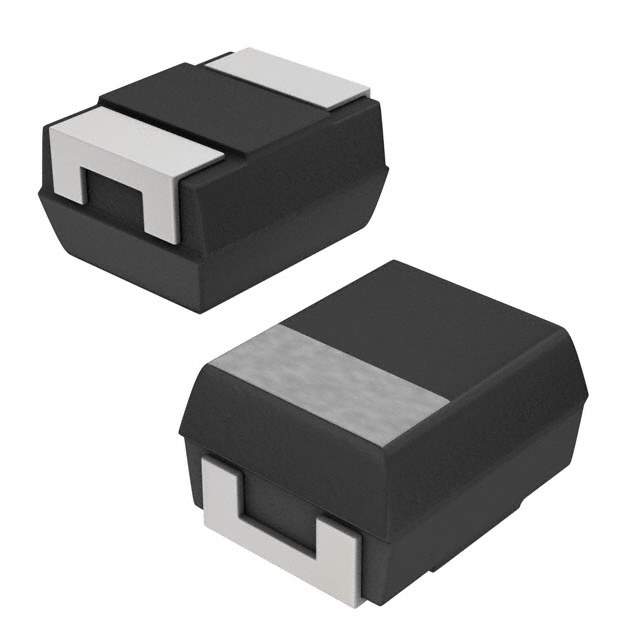

The TCFGB1A106M8R is a tantalum capacitor manufactured by Rohm Semiconductor. This capacitor is designed for general-purpose applications, offering stable performance and reliability. Tantalum capacitors are known for their volumetric efficiency, meaning they can store a significant amount of charge in a small package, making them suitable for space-constrained applications.

Applications:

• Consumer electronics: Decoupling and filtering in smartphones, tablets, and audio equipment.
• Industrial equipment: Power supply filtering and signal conditioning in control systems.
• Automotive electronics: Decoupling and filtering in engine control units (ECUs) and infotainment systems.
• Medical devices: Power supply filtering in patient monitoring equipment.
• Telecommunications equipment: Decoupling and filtering in base stations and network devices.

Features:

• High volumetric efficiency: Offers high capacitance in a small package.
• Stable performance: Provides consistent capacitance and low ESR over temperature and frequency.
• RoHS compliant: Meets environmental regulations for hazardous substances.
• Surface mount technology (SMT): Enables automated assembly and reduces manufacturing costs.
• Wide operating temperature range: Suitable for use in various environmental conditions.

Benefits:

• Reduced board space: Small package size allows for compact designs.
• Improved reliability: Stable performance ensures consistent operation over time.
• Environmentally friendly: RoHS compliance reduces environmental impact.
• Cost-effective: SMT design enables automated assembly and reduces manufacturing costs.
• Versatile application: Wide operating temperature range allows for use in various environments.

Additional Details:

The TCFGB1A106M8R is a tantalum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 10V. It features a molded case and is designed for surface mount technology (SMT). Tantalum capacitors are known for their high capacitance stability, low equivalent series resistance (ESR), and long-term reliability. The specific ESR value and ripple current ratings can be found in the datasheet. This capacitor is commonly used for decoupling power supplies, filtering noise, and energy storage. The RoHS compliance ensures it is free from hazardous substances such as lead, mercury, and cadmium, aligning with environmental regulations. The compact size and reliable performance make it a suitable choice for a wide range of applications where board space is limited and consistent operation is required. Always refer to the datasheet for detailed specifications and application guidelines before using this component in your design.
