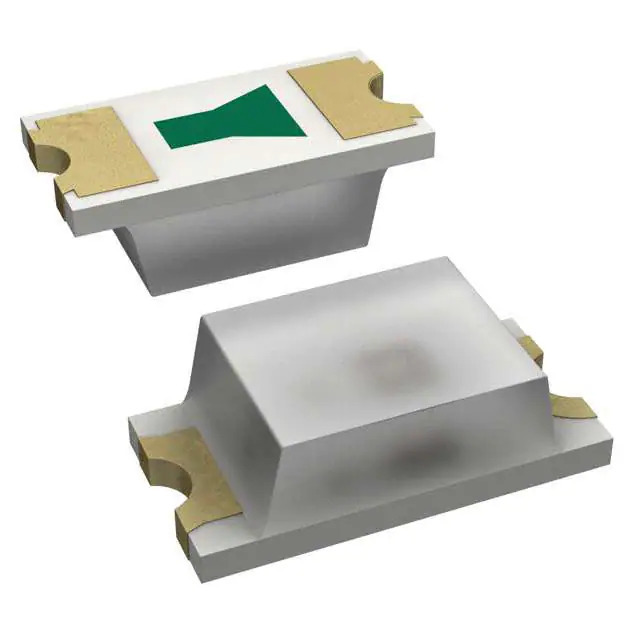

Same model may have multiple batches, images only for reference.
SML-D15YWT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-D15YWT86

Part No SML-D15YWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED YELLOW DIFFUSED 1608 SMD
Datasheet
SML-D15YWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-D15
Package Tape & Reel
Product Status Active
Color Yellow
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 224mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle -
Mounting Type Surface Mount
Wavelength - Dominant 590nm
Wavelength - Peak -
Features -
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D15
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371920-SML-D15YWT86
Ultra Librarian 3D Model Ultra Librarian SML-D15YWT86 CAD Model

Description

The Rohm Semiconductor SML-D15YWT86 is a yellow LED indicator with a diffused lens.

  • Size: 1.60mm x 0.80mm
  • Height: 0.65mm
  • Millicandela Rating: 224mcd
  • Forward Voltage (Vf): 2.1V @ 20mA
  • Lens Style: Rectangular
  • Lens Color: White
  • Mounting Type: Surface Mount
  • Package: 0603
