Same model may have multiple batches, images only for reference.

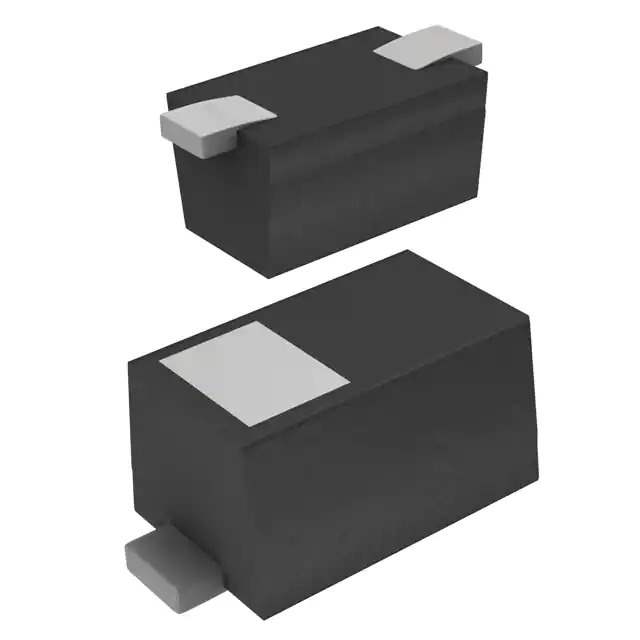

RB501SM-30T2R Real Image
Same model may have multiple batches, images only for reference.

RB501SM-30T2R

Part No RB501SM-30T2R
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA EMD2
Datasheet
RB501SM-30T2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 350 mV @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 10 µA @ 10 V
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package EMD2
Operating Temperature - Junction 125°C
Base Product Number RB501
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 835058-RB501SM-30T2R
Ultra Librarian 3D Model Ultra Librarian RB501SM-30T2R CAD Model

Description

The RB501SM-30T2R is a Schottky diode designed for rectification applications.

  • Maximum Reverse Voltage (Vr): 30V
  • Average Rectified Current (Io): 100mA
  • Forward Voltage Drop (Vf): 350mV @ a forward current (If) of 10mA
  • Reverse Leakage Current: 10μA @ a reverse voltage (Vr) of 10V
  • Mounting: Surface mountable
  • Package: SC-79, SOD-523
  • Operating Temperature: -40°C to 125°C
  • Status: Active and available for purchase
