The RB161M-20 is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is designed for applications requiring fast switching speeds and low forward voltage drop. It is commonly used in switching power supplies, freewheeling circuits, and other high-frequency applications.
Applications:
- Switching power supplies
- DC-DC converters
- Freewheeling diodes
- Reverse polarity protection
- High-frequency rectification
Features:
- Low forward voltage drop (VF): Reduces power loss and improves efficiency.
- Fast switching speed: Enables efficient operation in high-frequency circuits.
- Small surface mount package: Allows for compact circuit designs.
- High surge current capability: Provides robustness against transient events.
- RoHS compliant: Meets environmental standards.
Benefits:
- Improved efficiency: Low VF minimizes power dissipation, resulting in higher efficiency.
- Reduced heat generation: Low power loss reduces heat generation, improving reliability.
- Compact design: Small package size allows for space-saving designs.
- Enhanced reliability: High surge current capability provides robustness against transient events.
- Environmentally friendly: Compliant with RoHS standards.
Additional Details:

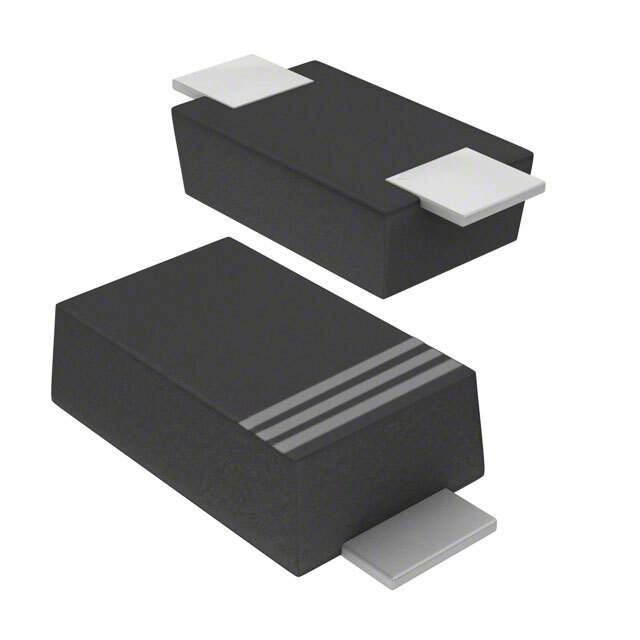

The RB161M-20 is typically packaged in a SOD-123 package. Key specifications include a maximum repetitive peak reverse voltage (VRRM) of 20V, a maximum average forward rectified current (IF(AV)) of 1A, and a low forward voltage drop (VF) of typically 0.4V at 1A. The operating temperature range is typically from -40°C to +125°C. The fast switching speed and low forward voltage drop make this diode well-suited for high-frequency applications where efficiency is critical. It is a reliable and cost-effective choice for a variety of diode applications.
