Same model may have multiple batches, images only for reference.

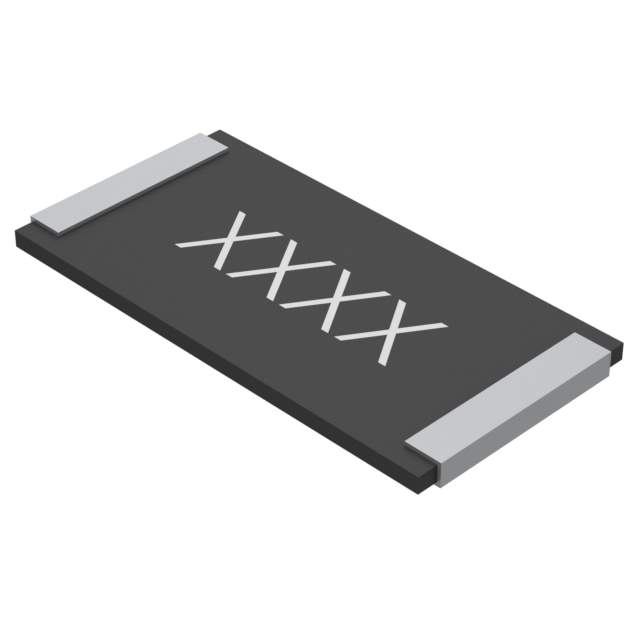

PMR100HZPFV4L00 Real Image
Same model may have multiple batches, images only for reference.

PMR100HZPFV4L00

Part No PMR100HZPFV4L00
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.004 OHM 1% 2W 2512
Datasheet
PMR100HZPFV4L00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Rohm Semiconductor
Series PMR
Packaging Reel - TR
Resistance (Ohms) 0.004
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package 2512 (6432 Metric)
Manufacturer Package 2512
Size 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Maximum) 0.019" (0.47mm)
Number of Terminations 2
Manufacturer Homepage www.rohm.com
RoHS State Request Verification
Win Source Part Number 726049-PMR100HZPFV4L00
Popularity Medium
Supply and Demand Status Limited
Family Name PMR
Introduction Date May 07, 2003
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian PMR100HZPFV4L00 CAD Model

Description

This component features a series of PMR, a packaging of Reel - TR, and an operating temperature range of -55°C ~ 155°C.

  • Features: Automotive AEC-Q200, Current Sense
  • Tolerance: ±1%
  • Package Size: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Composition: Thick Film
  • Terminations: 2
  • Manufacturer Homepage: www.rohm.com
  • Alternative Parts: CSRF2512FT4L00, WSL25124L000FEA18, LRC-LRF2512LF-01-R004-F
  • Introduction Date: May 07, 2003
  • EOL Date: 2025 (estimated)
  • ECCN: EAR99
  • Additional Information: Limited
