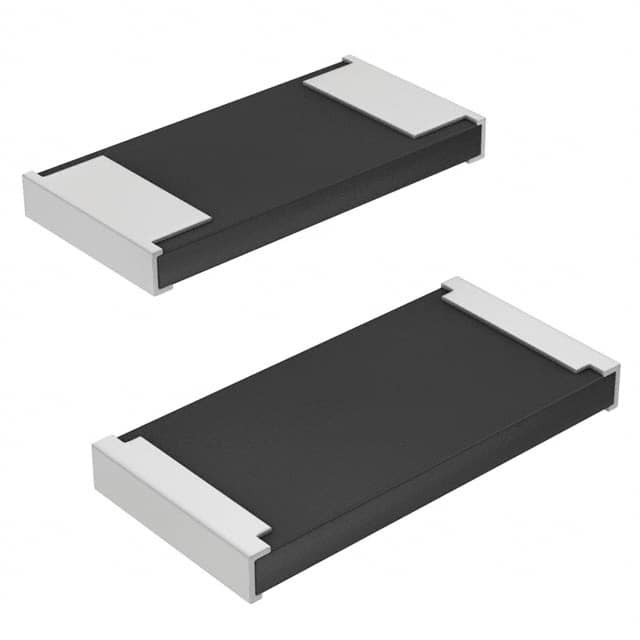

Same model may have multiple batches, images only for reference.
PMR100HZPFV3L00
Same model may have multiple batches, images only for reference.

PMR100HZPFV3L00

Part No PMR100HZPFV3L00
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.003 OHM 1% 2W 2512
Datasheet
PMR100HZPFV3L00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series PMR
Package Tape & Reel
Product Status Active
Resistance 3 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.019" (0.47mm)
Number of Terminations 2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 852945-PMR100HZPFV3L00
Ultra Librarian 3D Model Ultra Librarian PMR100HZPFV3L00 CAD Model

Description

The 852945-PMR100HZPFV3L00 is a chip resistor designed for surface mount applications.

  • Resistor Type: Chip Resistor
  • Series: PMR
  • Certification: Automotive AEC-Q200
  • Size: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Height: 0.019" (0.47mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 2W
  • Resistance: 3 mOhms
  • Package: 2512 (6432 Metric)
  • Packaging: Tape & Reel
  • Package Quantity: 2,000 pieces
  • Element Type: Metal Element
  • Terminations: 2
  • Applications: Current Sensing
